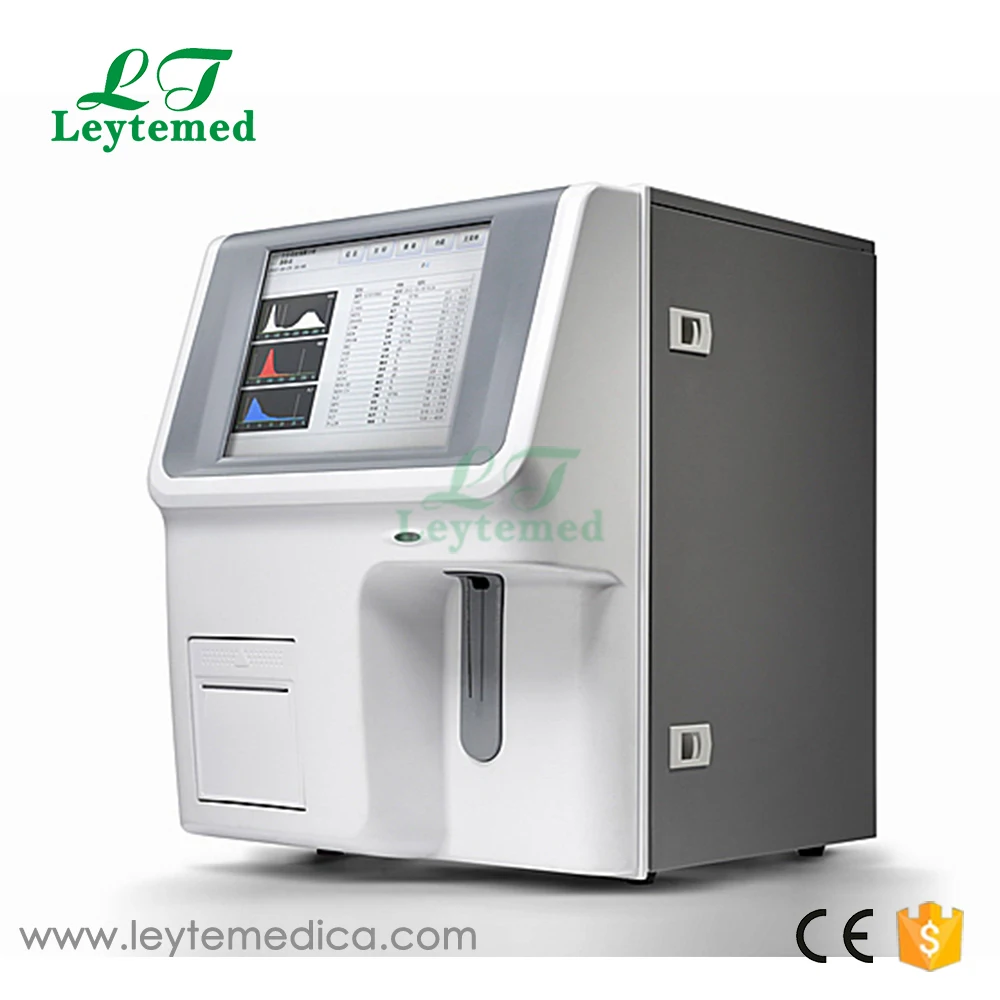

LT6400 color touch screen 10.4 inch 60 samples/hour blood cell counter
3 diff,20parameters with 3 histogram.
Flexible and Easy To Use
Fully automatic analysis cycle.
Automatic internal and external probe cleaningHigh Reliability and Safety
Total Solution For QC and Calibration
Comprehensive QC programs inluding L-J , auto draw and print QC graph
Automatical and manual calibration
Unique calibration program with fresh blood
Customizable software is available
Huge storage of 30,000 patient with histogram
Easy to check the patien data
Programmable multi-format printout
Specifications
Test principle: Electrical resistence for counting and Cyanide free method for HGB.
Clot clear: High voltage burn and high pressure flush.
Sample volume: whole blood : 9.8μl, prediluted : 20μl
Aperture diameter: WBC: 100μ m, RBC,PLT: 70μ m
Chambers Two chambers.
Throughput: 60 samples/hour
Language English,Spanish,French,and Chinese.
Reference range type: newborn,children,male,female and general.
Display: 10.4 inch color touch screen, show all parameters and histograms
Input and output: USB, keyboard,mouse,Parallel Port,RS232 serial port, can be connected to the network by external computer.
Working Environment: Temperature:10℃~35℃;Humidity:≤85% RH
Voltage: AC 110 V~240V,50Hz/60 Hz±1Hz ,Auto adapt according to the input voltage
Dimension 370mm×435mm×472mm
Net weight: 30Kg
Performance
Parameter | Linearity | Precision(CV%) |
WBC(109/L) | 0.3~99.9 | 2.5(7.0~15.0) |
RBC(102/L) | 0.20~8.0 | 2(3.5~6.0) |
HGB(g/L) | 10~250 | 1.5(110~180) |
MCV(FL) | | 0.5(80.0~110.0) |
PLT(109/L) | 10~99.9 | 5(150~500) |
Carry over | WBC≤2% RBC≤1%, HGB≤2% PLT≤2% |
Parameter
WBC
Lymph#
Mid#
Gran#
Lymph%
Mid%
Gran%
RBC
HGB
HCT
MCV
MCH
MCHC
RDW-SD
RDW-CV
PLT
MPV
PDW
PCT
P-LCR
WBC Histogram
RBC Histogram
PLT Histogram
