LTUB10 low cost Ultrasound Scanner Box
LTUB10 low cost Ultrasound Scanner Box
LTUB10 low cost Ultrasound Scanner Box

LTUB10 low cost Ultrasound Scanner Box

Model NO.:
USD 1150.00-1300.00 / set
Minimum order quantity:
1 set
Supply Ability:
10000 set / Week
Country of Origin:
Product Description

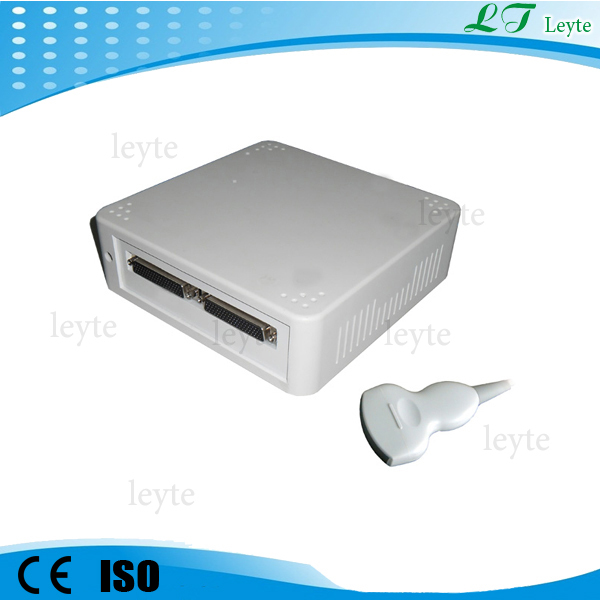

LTUB10 low cost Ultrasound Scanner Box

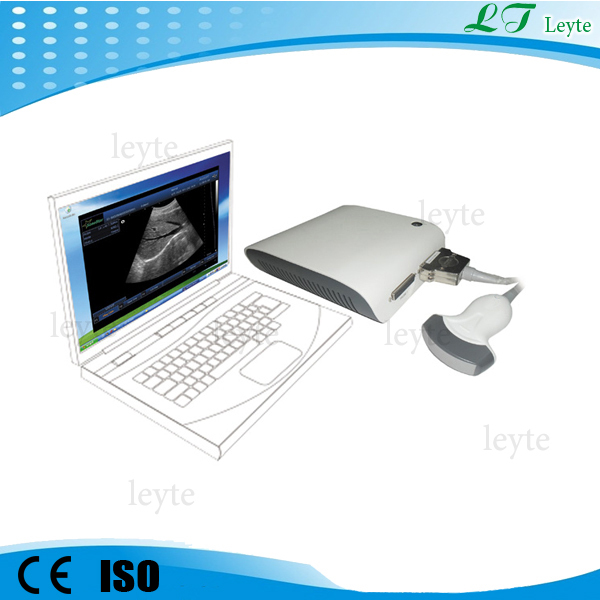

LTUB10 CE medical b ultrasound scan box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the"Space"key can be defined as"Freeze"button, the"+"and"-"can set to value increase and decrease, all by your define.


Feature of LTUB10 CE medical b ultrasound scan box :

-Use computer of user's, lost cost to get ultrasound scanner -Small and light -PC based, powerful function, large volume storage -Full digital, clear image -3D image function(option) -Silica gel waterproof ultrasound keyboard(option) -Print by computer’s USB laser/inkjet printers -Can work with external battery(option)



Specification of LTUB10 CE medical b ultrasound scan box :

-Operation system: windows XP(Best) or windows 7 -D-Maximum Scanning Depth: max. 250mm -Multi-frequency: 5 segment frequencies -Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 -Image gray scale: 256 level gray scale -Cine Loop::max. 1024 frames -Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode) -Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision. -Measurement and calculation(human): B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. -Measurement and calculation(veterinary): Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD -Image store: by computer hardisk or USB disk -Print: by USB laser/inkjet printers with computer -DICOM3.0, medical digital imaging and communication -3D image function(function): can get rebuilt 3D image by any probe -Dimension: 230mm×200mm×64mm -Weight: with one probe around 1.2kg -Work time by battery(optional): about 3 hours -Probe Connector::2


Standard Configuration of LTUB10 CE medical b ultrasound scan box :Ultrasound Box, USB connect cable, Convex probe(R60, 3.5MHz), Power adapter, CD with ultrasound software, Manual.


Optional: Linear, Trans-vaginal, Micro-convex, Rectal Probe; Ultrasound keyboard; Computer; Battery; Bag.




Click to contact us

Our professional sales staff to help you make better purchasing decisions

click to order1000.jpg

Our Company

Guangzhou Leyte Medical Equipment Co., Limited




Quality Workplace
Good Labor relations
 Testing equipment




Speak fluent English
Well-trained and professional sales
More than 10 years of experience engineers

team +1.jpg

Our professional sales staff to help you make better purchasing decisions



Customer Photo

Where are our customers?

We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.

371 220.jpg

Your satisfaction is our duty! It will be our great honor to serve you.



















Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.
We have exported our products to more than 50 countries and built long term partnerships with clients.
We do hope we can offer you more help in medical field and build the long term business relationship with you.

Packing & Delivery


 DHL/EMS/FedEx/TNT/Ups etc.
Delivery Details1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~5 days to arrive , which is door to door, you no need go out can get LTUB10 low cost Ultrasound Scanner Box.
2.We can also help you ship by air cargo, it takes about 2-7 days to arrive, while you need to go to Air port to take LTUB10 low cost Ultrasound Scanner Box.
3.If goods are large quantity and you need not so urgently ,you can choose by sea to save some freight cost which takes you about one month to get LTUB10 low cost Ultrasound Scanner Box.


No matter what delivery way ,depending on your actual requirements...

Our Service


Pre-Sales Service

* For all  your  inquires  about  us, we will reply you in detail within 24 hours.

* We  own  well-trained   and   professional   sales   who  can speak fluent English.

*We offer  OEM  services.  We  can  print  your  own  logo  on LTUB10 low cost Ultrasound Scanner Box,also can customize the retail box  packing and other things.

* View our company.

After-Sales Service

* We have very experienced engineers ,can help you better use LTUB10 low cost Ultrasound Scanner Box.Training how to instal the machine, training how to use the machine.

*If has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost.

*We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault.

*If need parts for replacement, we will send to you.

*If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.


























Q:What’s the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What’s your delivery time?
A: Generally it is 10 days if the goods are in stock.

or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.

  • Type:Doppler Ultrasound Equipment
  • Brand Name:leyte
  • Model Number:LTs9V
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
