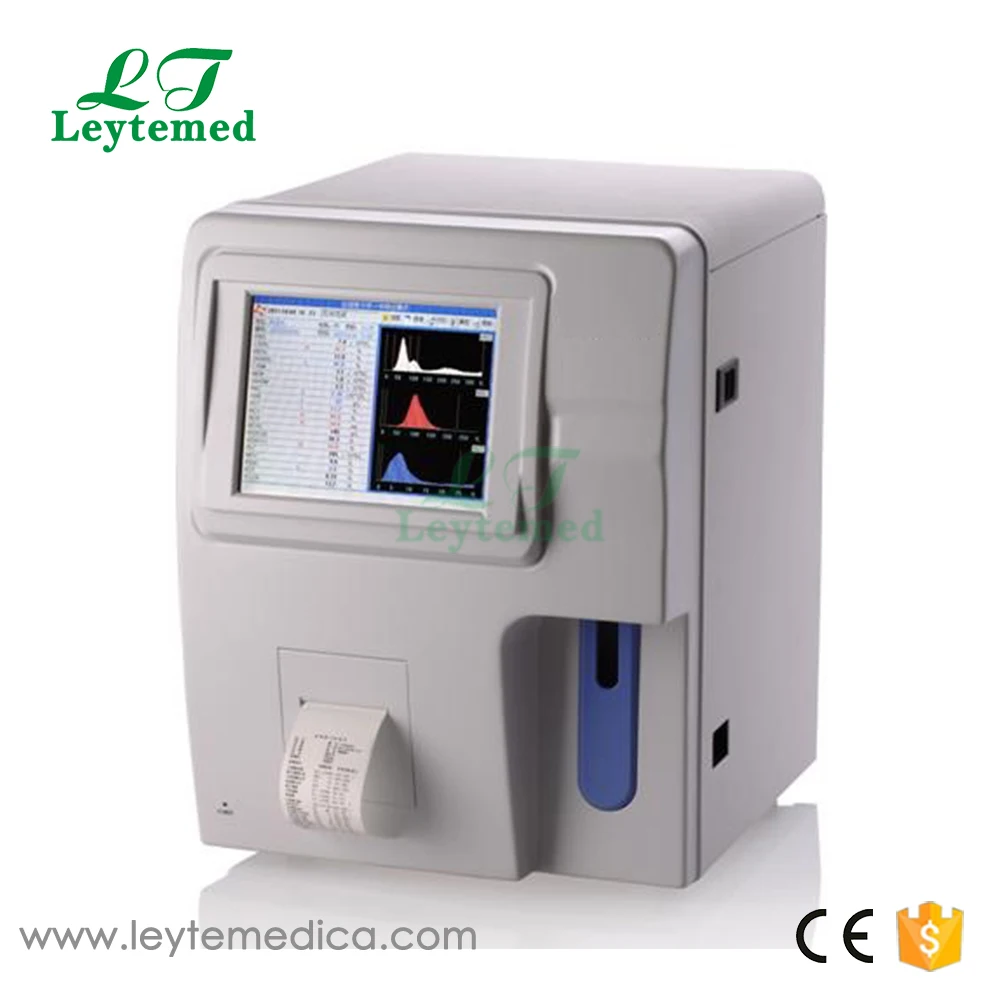

LT8800 Auto function of hematology analyzer
3part differentiation of WBC, 23 parameters, single channel counterVolume measurement by time ,not wrong warning
Adanced valve technology,long life
RS232 interface, PC connecting
More than 35 samples test per hour
Electrical resistance for counting and SFT method of Hemaglobin
Low sample consumption: venous 9.8 ul, capillary 9.6 ul, prediluted 20 ul for twice testing one time
8.4 color TFT, Windows interface all testing parameter displayed simultaneously
Windows operation system graphical buttons mouse and keyboard operation
Double convolution and intelligent fitting
Automatic diluting , Mixing , rinsing and clog clearing
Automatically sample probe cleanning (inside and outside)
Large storage capacity: more than 10,000 samples +3 histograms
Internal thermal-sensitive printer or external printer.
Main Technical Specifications
Methodology: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
Work mode : Single Channel + unique Hemoglobin test system
Sample volume: 9.6μL for Venous and capillary mode, 20μL for prediluted mode
Throughput: More than 35 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions
Storage: More than 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
Operation langue: English
QC control : X-B, L-J, X , SD, CV %
Refrence Value Setting : Male , Female, Children, Neonate
Alarm : 25 test of alert messages
Input / output : RS232, parallel printer and keyboard
Print : Graphic thermal printer with various printing format, optional external printer
Temperature : 18℃ - 30℃,wet ≤ 10-90%
Power supply : 220 V ±22 VAC, 50±1Hz
Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
Weight : 20 KG
Precision
Parameters linear range CV %
WBC( 10 9 / L ) 0.0 - 99.9 ≤2%
RBC ( 1012 / L ) 0.0 - 9.99 ≤1.5%
MCV ( fL ) 40-150 ≤0.5%
PLT ( 10 9 / L ) 0-999 ≤4.0%
HGB( g/L ) 0.0-300.0 ≤1.5%
Parameters
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR
3 –histograms : WBC,RBC and PLT
