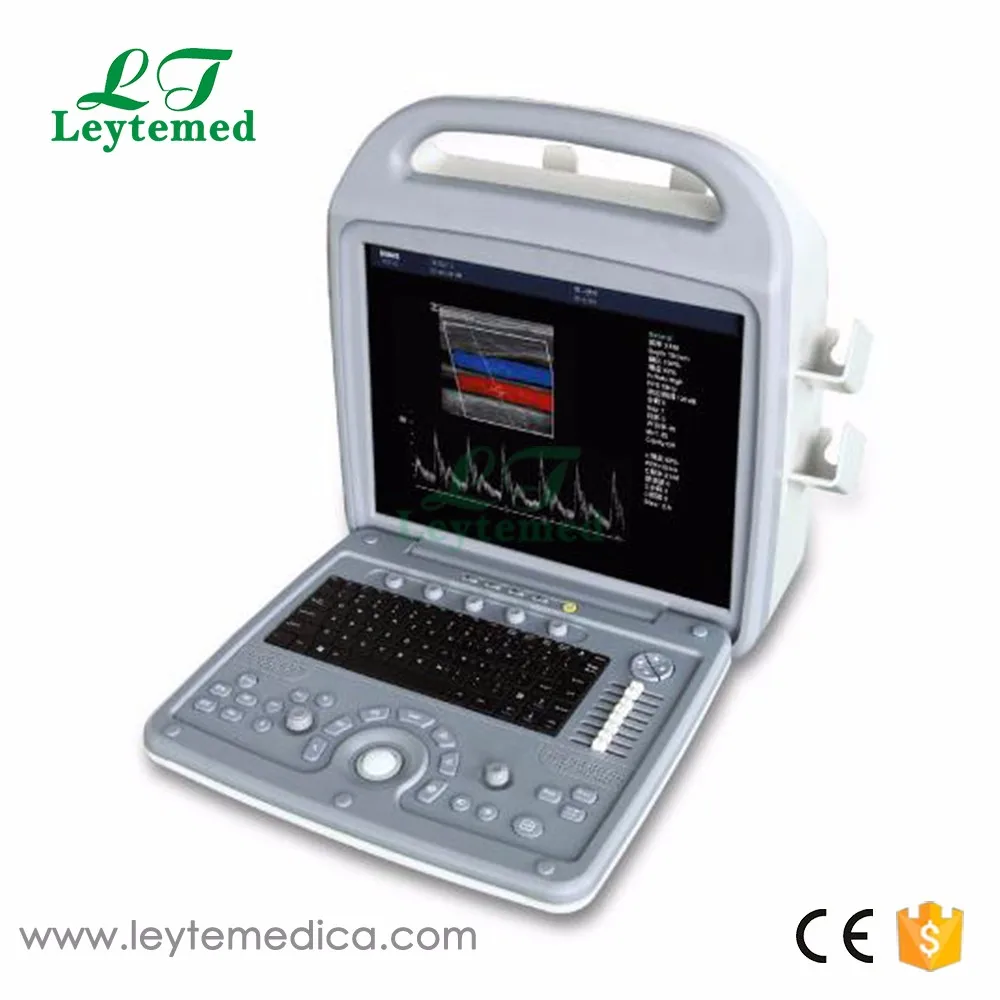

LTV580 Ultrasonic diagnosis scanner 3D/4D obstetric ultrasound
Application:
Abdomen,maternity, urology, superficial organization, peripheral vascular, small organ, cavity, and other interventional screening and therapeutic use.
Technical specifications
Full-digital color ultrasound diagnostic system, the system has the ability to upgrade
Frequency Range :2.0-14MHz
Probe types: convex array, linear array, heart and cavity probes
Display: B / M, B / D, B / CD, B / D / CD may be the same screen display, M type and scope of PWD icon size adjustable
Frequency Probe Specifications:
Abdomen convex array probe: 2.0 ~ 5.0MHz electronic convex array broadband probe frequency, the frequency range 2 - 5MHz, 3 selectable frequencies Bandwidth
E-broadband frequency linear array probe, the frequency range 5 - 14MHz, scan angle: 60 degrees
Intracavity frequency convex array broadband probe, the frequency range 4 - 8MHz, scanning angle ≥ 135 °
Optional pediatric cardiac probe, transesophageal probe, laparoscopic probe, tiny protruding array probe, intraoperative probes.
probe array element: ≥ 128
Image Mode: two-dimensional B-, M-type, pulsed PW , color CFM / power Doppler and direction of the Energy PDM
B / D use either: B / PWD, B / CD / PWD three simultaneous display
Digital full anatomical M-imaging techniques, the sampling line can be anywhere in the 360-degree range as the center of arbitrary sampling
Organization of second harmonic imaging, harmonic function ≥ 2 groups
B / M / CD can be adjusted independently
Resolution: Lateral ≤ 2mm, longitudinal ≤ 1mm
Detecting depth: ≥ 240mm
System dynamic range ≥ 140dB
15cm deep, full-view scans, anatomical M-frame rate ≥ 120 / s (for pictures)
Image playback video: frame by frame, continuous playback of ≥ 300 frame
Focus: Emission ≥ 8 segment focus, to receive: continuous dynamic variable aperture, dynamic apodization digital focusing
Scan Line: Every frame linear density ≥ 400 Ultrasonic Line
Measurement and Analysis
General measurement: distance, perimeter, area, slope, heart rate, pressure, residual urine, RI, PI, flow rate, etc.
Gynecology and obstetrics special measuring software: fetal gestational age ,EDC, estimation fetal weight, Take average measured multiple times,S/D ratio, etc
Character Tags: shows the date, time, patient's name, user name, etc., custom note table, probe, frequency and body marked, with a puncture and guide lines
keyboard operation: Sino-British operation interface
position markers: ≥ 30 Zhong with the location of the probe position markers
Color Doppler display modes: speed dispersion shows that the energy shows that dispersion Show
display position adjustment: linear array scanning range of interest: -20 ° - +20 °
Doppler flow velocity: The maximum blood flow velocity measurements: PWD ≥ 6m / s; the highest single measurement of a continuous Doppler velocity ≥ 10 m / s minimum flow velocity measurements: PWD ≥ 10mm / s
width and location of sample volume adjustment :0.5 - 20mm adjustment classification
with a Doppler angle correction function for sampling and then
Display: ≥ 15-inch high-resolution progressive-scan LCD displays.
Probe Interface:2 units
Picture archiving and management
Dynamic and static image real-time hard drive storage capabilities, the host built-in hard disk ≥ 160G.
Built-in DVD drive with a recording can be carved directly to the medical records of the CD-ROM to save.
Playback of the spectral image can also be synchronized audible sounds
There was a picture online clipboard functions: real-time scan, only one button operation, can be dynamic and static ultrasound images are stored in the screen side of the clipboard, you can always transfer out of contrast observation.
The original data acquisition and processing capabilities, can playback dynamic and static image post-processing capabilities, and can convert directly to the image avi, tif, Bmp, and other common format computer
Input / Output Signal Interface: PAL-D, USB, RS-232, VCR, RGB, USB,, VGA port, etc.
Supply Voltage: AC
