LTX23 hot sale hospital medical radiography x ray machines for sale
LTX23 hot sale hospital medical radiography x ray machines for sale
LTX23 hot sale hospital medical radiography x ray machines for sale

LTX23 hot sale hospital medical radiography x ray machines for sale

Model NO.
LTX23
Price:
USD 9500.00-18000.00 / unit
Minimum order quantity:
1 unit
Supply Ability:
999 unit / Month
Country of Origin:
Huangpu
Quantity:
  • Properties:Medical X-ray Equipments & Accessories
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Brand Name:Leyte
  • Model Number:LTX23
  • Model:x ray machines for sale
  • Generator max current:300mA
  • Generator max voltage:125kv
  • Double fouce (tube):Small: 1*1mm, big: 2*2mm
  • power supply:380V/220V±10%, 50HZ ±0.5Hz
  • Radiography table:2000*665*700mm
  • Moving range of bed surface:640mm in Length, 200mm in breadth
  • Max size of cassette:356*432mm(14''*17'')
  • Radiograph time:0.04~6.35s
  • Power Capacity:Two-phase 30KVA
Product Description

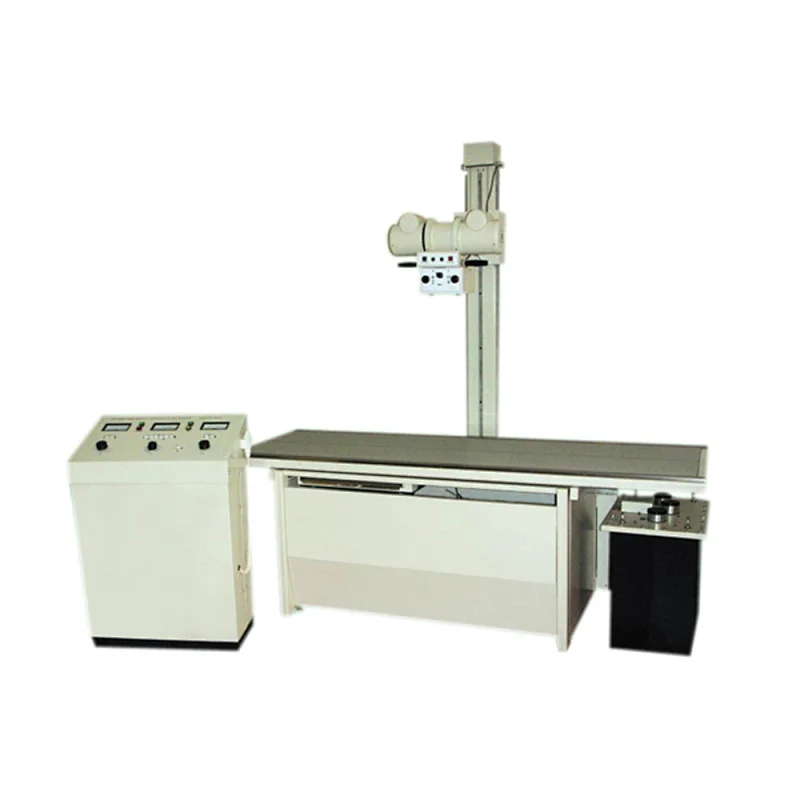

LTX23 Hospital medical radiography x ray machine

MEDICAL X-RAY MACHINE

USE
General radiography, Filter-ray-filter radiograph

Unit Configuration
Control, HT generator unit, Ht cable, X-ray tube unit, Radiographic table-X-ray source column, Collimator

MAIN CHARACTERISTICS

1.Single-table/single-tube

2.Rotary anode X-ray tube unit and tangential annular tube head

3.Single-phase full wave rectification high-voltage generator

4.Power voltage(v) radiograph kilovolt (KV).step-less control electric mechanism

5.Filament stabilizer for X-ray tube unit and space charge compel mentor

6.Radiograph volume KV 、mA and S. grading and interlock protection

7.Adopt digital circuit timer. Grading according to R10 priority coefficient,(for more accurately controlling time)

8.HT primary, the zero controlled circuit of silicon-controlled rectifier of heavy power

9.Radiographic table can move in length an breadth

The radiographic table. Column and vibrating grid are in a whole without ceiling and floorh rails bottom

MIN TECHNICAL INDEXES
ITEM
CONTENTS
INDEX
Demand of power supply
Capacity
Two-phase 30KVA
Voltage、Frequency
380V/220V ±10%50HZ ±0.5Hz
Intemal resistance
2Ω(380V) 0.6 Ω(220V)
Power supply
Adjustable range
380±10% at220V being adjustable continuously
Radiograph
Voltage
50-90KV
50-90KV being adjustable continuously
current
Small focus:50mA100mA,Big focus:50mA 100mA 200mA 300mA
time
0.04~6.35s 23grades together grading a according to R10 coefficient
High-voltage generator
Capacity
20KVA(instantaneous)
Max DC output voltage
125KV
Max DC output current
300mA
X-Ray tube
Model
XD51.20-40/125
Focus
Small focus 1×1mm big focus2×2mm
Radiographic table
Length×width×height of bed surface
2000mm×665mm×700mm
Moving range of bed surface
640mm in Length,200mmin breadth
Ray-filter of table
Travel in length ≥500mm
Grid density N=28
Convergence distance f。=100cm
Grid ratio r=8
Column of X-ray tube unit
Moving Longitudinally along
Radiographic table
1000mm or 1800mm
Distance to friend as moving up and down (along column)
650~1800mm
Rotary around the center of cross arm
±180°
Rotary around the shaft line of
X-ray annular tubes
-10°~60°~ +120°
Max size of cassette
356mm×432mm (14″×17″)
Related Products
Our Company

Factory

Quality Workplace

Good Labor relations

testing equipment

Team


Speak fluent English

Well-trained and professional sales

More than 10 years of experience engineers

Our customers

We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.

Our professional sales staff to help you make better purchasing decisions

Packing & Delivery
Delivery
DHL/EMS/FedEx/TNT/Ups etc.



Delivery Details
1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~ 5 days to arrive , which is door to door  ,you   no need go out  can  get LTX23 Hospital medical radiography x ray machine.
2.We  can   also   help  you  ship   by   air cargo, it  takes about  2-7 days  to arrive, while   you   need   to  go  to  Air   port   to take LTX23 Hospital medical radiography x ray machine.
3.If  goods  are  large  quantity  and  you need not so urgently ,you can choose by sea   to  save  some   freight  cost   which takes    you   about   one   month   to    get LTX23 Hospital medical radiography x ray machine.

No matter what delivery way ,depending on your actual requirements...

Our Service

Pre-Sales Service

* For all your inquires about us, we will reply you in detail within 24 hours.
* We own well-trained and professional sales who can speak fluent English.
*We offer OEM services. We can print your own logo on LTX23 Hospital medical radiography x ray machine, also can customize the retail box packing and other things.

*Machine warranty: 1year
* View our company.

After-Sales Service

* We have very experienced engineers,can help you better use LTX23 Hospital medical radiography x ray machine. Training how to instal the machine, training how to use the machine.
*If has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost.
*We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault.
*If need parts for replacement, we will send to you.
*If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.

FAQ

Q:What's the minimum order quantity (MOQ)?

A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?

A: Of course we can do OEM/private label for you.

Q: What's your delivery time?

A: Generally it is 10 days if the goods are in stock.

or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?

A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?

A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.
