LTX21B High voltage generator 100ma X ray machine
LTX21B High voltage generator 100ma X ray machine
LTX21B High voltage generator 100ma X ray machine

LTX21B High voltage generator 100ma X ray machine

Model NO.
LTX21B
Price:
USD 4110.00-4500.00 / set
Minimum order quantity:
1 set
Supply Ability:
100.0 set / Month
Country of Origin:
Huangpu
Quantity:
  • Properties:Medical X-ray Equipments & Accessories
  • Maximum output power:P =4kW
  • Nominal power:100kV,40mA,0.1s,4kW
  • Frequency:≥40kHz
  • KV adjusting range:40kV~110kV, step of continuous adjustment is 1 kV
  • mA adjusting range:36mA~70mA
  • mAs adjusting range:1mAs-200mAs,shifted adjustment
  • S adjusting range:0.04s~3.2s
  • X ray tube:Focus:0.6/1.5mm;
  • Certificate:CE ISO
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Model Number:LTX21B
  • Brand Name:leytemed
  • Material:other
Product Description

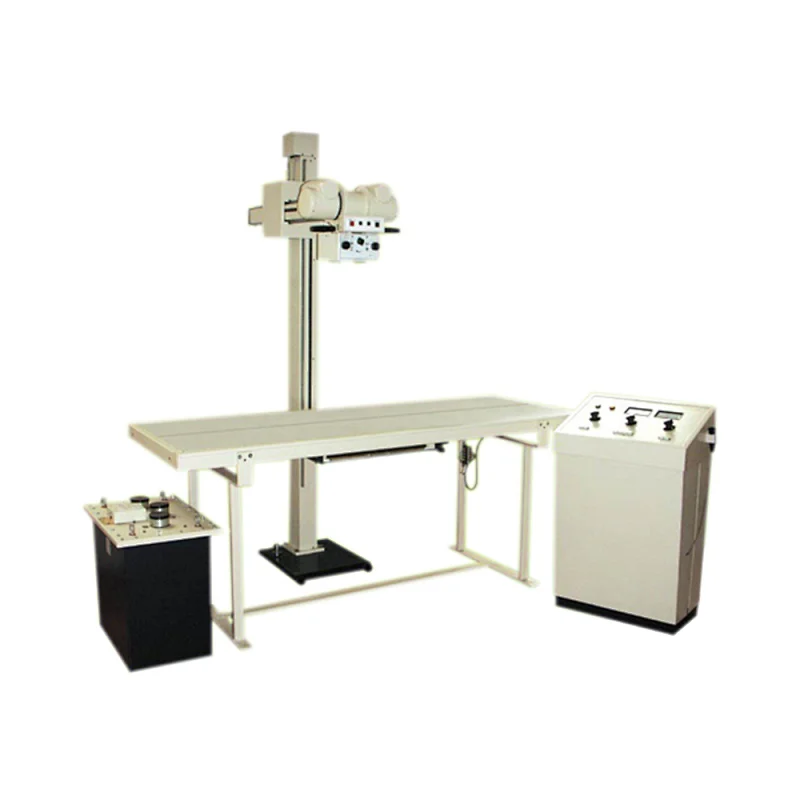

High voltage generator 100ma X ray machine

USE

General radiography, Filter-ray device radiography

Unit Configuration
Control, HT generator unit, Ht cable, X-ray tube unit, Diagnostic table, Collimator

MAIN CHARACTERIDTICS

1.Single table and single tube
2.Design according to the electric mechanism of middle-size machine, the function is reasonable function.
3.High-voltage system is of split structure, with high-voltage generator of full-wave rectification and stable operation
4.Supply voltage (V), photograph kilovolt (kV) and infinitely variable control.
5.Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output
6.Equipped with the capacity limitation and portection circuit and Kv mA S interlock limit protection
7.The timer circuit grade according to R10 priority coefficient and an exact time control
8.The photographic flat bed has a vibrating ray-filter
9.The pillar has only the bottom trick, with easy installation.

MIN TECHNICAL INDEXES
Supply power
Voltage
220V/380V±10%(single phase )
Frequency
50Hz±0.5Hz
Capacity
10KVA
Intemal resistance
380v:2Ω,220V:0.6Ω(2Ωat80v; 06Ωat220V)
Max DC output voltage
90KV
Max DC output current
125mA
Radiograph
Voltage
50-90KV
current
Small focus 15mA, big focus30mA 60mA 100mA
time
0.04-6.3s,24grades together
High-voltage generator
Capacity
7KVA
X-Ray tube
Model
XD4-2.9/100
Focus
Small focus 1.8mm big focus4.3mm
Radiograph table
Bed face (L×W×H)
1960×660mm×700mm
Bucky
Grid density N28
Convergence distance fo 100cm
Grid ratio r8
Max size of cassette
356mm×432mm(14″×17″)
Pollar of X-ray source unit
Moving in length (along The bottom table )
﹥1350mm
moving un breath
﹥360mm
moving up and down
720~1800mm

MAX VOLUME OF RADIOGRAPH

Focus of X-Ray tube
Radiograph mA
Max Radiograph KV
Max exposure time allow
Small focus
15mA
90KV
6.3S
Large focus
30mA
90KV
6.3S
60mA
90KV
6.3S
100mA
85KV
2.5S
