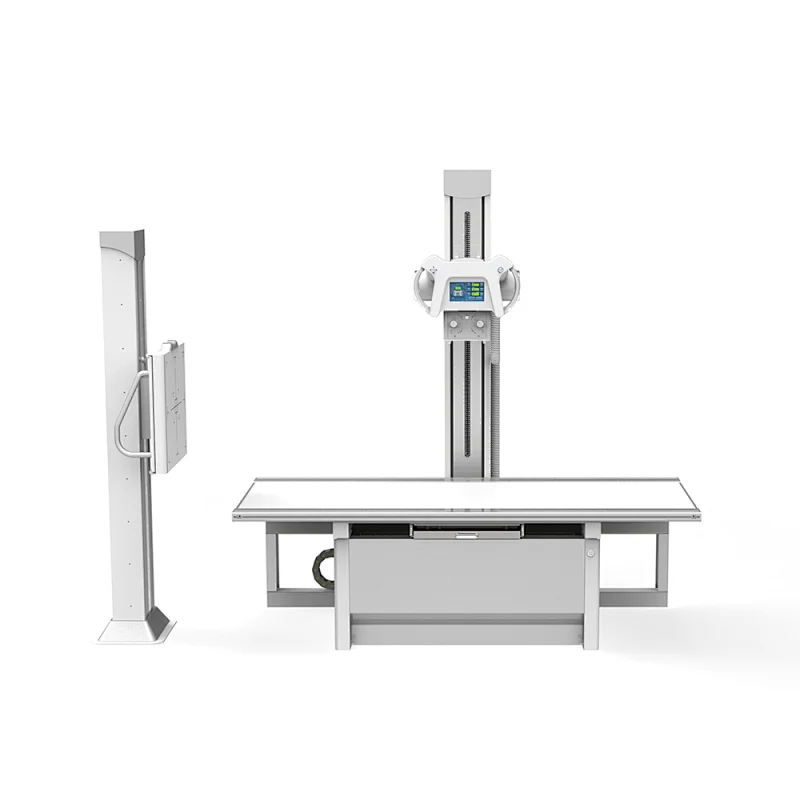

LTX15 High frequency 200mA 500mA X-ray machine for medical diagnosis
LTX15 High frequency 200mA 500mA X-ray machine for medical diagnosis
LTX15 High frequency 200mA 500mA X-ray machine for medical diagnosis

LTX15 High frequency 200mA 500mA X-ray machine for medical diagnosis

Model NO.:
LTX15
Price:
USD 9600.00-10000.00 / unit
Minimum order quantity:
1 unit
Supply Ability:
10.0 unit / Month
Country of Origin:
Huangpu port
Quantity:
  • Properties:Medical X-ray Equipments & Accessories
  • Product name:200ma 500ma High Frequency X-ray Machine
  • Nominal power:100kV ,200mA, 500mA
  • tube current:Radiography16mA~200mA Radiography16mA~630mA
  • resistance power:less than 0.5Ω
  • Output power:20kW/ 50kW
  • Exposure Time:Radiography 0.0025s~6.4s adjustable
  • Nominal Frequency:≥30kHz
  • Anode speed:2800r/min
  • Focus Distance:Small focus:1.0mm Large focus:2.0mm
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Brand Name:leytemed
  • Model Number:LTX15
  • Material:other
Product Description

20KW High Frequency X-ray Machine

Parameter
LTX15
Intermittent mode
100kV ,200mA,20kW
Power Voltage
Three-phase five wires 380V±38V
tube current
Radiography16mA~200mA
Output Voltage
Radiography 40-125KVstep 1kV
resistance power
less than 0.5Ω
Output power
20kW
Exposure Time
Radiography 0.0025s~6.4s adjustable
Nominal Frequency
≥30kHz
Anode speed
2800r/min
Anode heat capacity
140KHU
Focus
Small focus:1.0mm Large focus:2.0mm
L*W*H of bed surface
2100mm×825mm×650mm
Horizontal moving range
≥250mm
Vertical moving range
≥825mm
grid density
≥40 lines/cm.
grid ratio
10:01
Focus Distance
100cm
Cassette size
5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
No
Part Name
Qty
1
X-ray tube
1
2
Radiographic Table
1
3
collimator
1
4
Microcomputer console
1
5
High-voltage generator,
1
6
High voltage cable
2
7
Vertical bucky stand( Optional)
1
