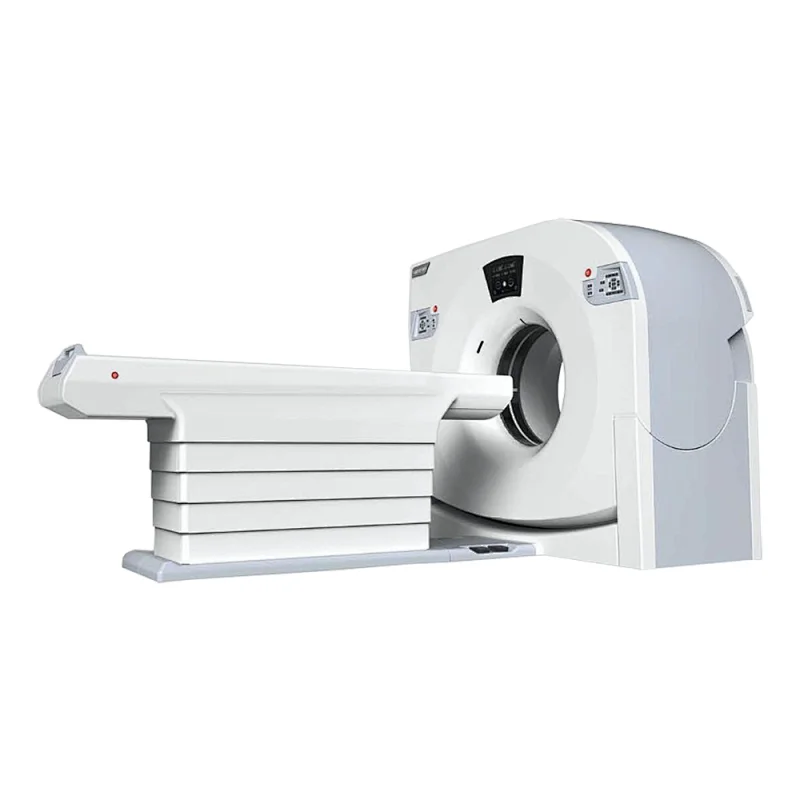

LTX03 32 Slice Spiral CT scan machine for hospital
LTX03 32 Slice Spiral CT scan machine for hospital
LTX03 32 Slice Spiral CT scan machine for hospital

LTX03 32 Slice Spiral CT scan machine for hospital

Model NO.
USD 334600.00-335000.00 / set
Minimum order quantity:
1 set
Supply Ability:
10.0 set / Month
Country of Origin:
Huangpu Port
  • Properties:Medical X-ray Equipments & Accessories
  • Scan time:0.39s, 0.5s, 0.6s, 0.7s, 0.8s, 1.0s and 2.0 se
  • Imaging speed:32slice/loop
  • Scan Slice thickness:0.625mm, 1.25mm, 2.5mm, 3.75mm, 5mm, 7.50mm, and 10mm
  • reconstruction display field (FOV):50-500mm
  • Image reconstruction matrix:512 * 512, 1024*1024
  • Single scan time:100 sec
  • Positioning piece length:1950 mm
  • Spatial resolution (X, Y axis plane):20 lp/cm 0% MTF
  • Tube anode heat capacity:8.0MHU
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Brand Name:leytemed
  • Model Number:LTX03
  • Material:other
Product Description

32 Slice Spiral CT scan machine for hospital

1, Technical specifications and parameters

1.1 Gantry
1.1.1 Frame size: 76cm, angle: ±30 degrees, can be remote control operation into / out, rise / fall table and gantry tilt
1.1.2 Slip ring type: low pressure type slip ring
1.1.3 Detector type: GOS solid detector
1.1.4 Detector row: 32

2.1 X-ray system
2.1.1 Tube anode heat capacity: 5.3MHU
2.1.2 Maximum anode heat dissipation rate of tube: 815 KHU/min
2.1.3 Small focus: 0.5 x 1 mm
2.1.4 Large focus: 1 x 1mm
2.1.5 Focus to the scanning field and other central distance: 570mm
2.1.6 Minimum tube voltage: 80kV
2.1.7 Maximum tube voltage: 140kV
2.1.8 High voltage generator power: 50.4kW
2.1.9 Minimum current: 10mA
2.1.10 Maximum current: 442mA

2.2 Patient Table
2.2.1 Maximum scan range: 1950mm
2.2. The highest vertical movement of the table is 990mm,
the lowest vertical movement of the table is 425mm
2.2.3 Maximum table longitudinal speed: 150 mm/s; minimum longitudinal speed: 5 mm/s
2.2.4 The table longitudinal movement accuracy: ±0.25 mm
2.2.5 The maximum patient table load: 250kg
