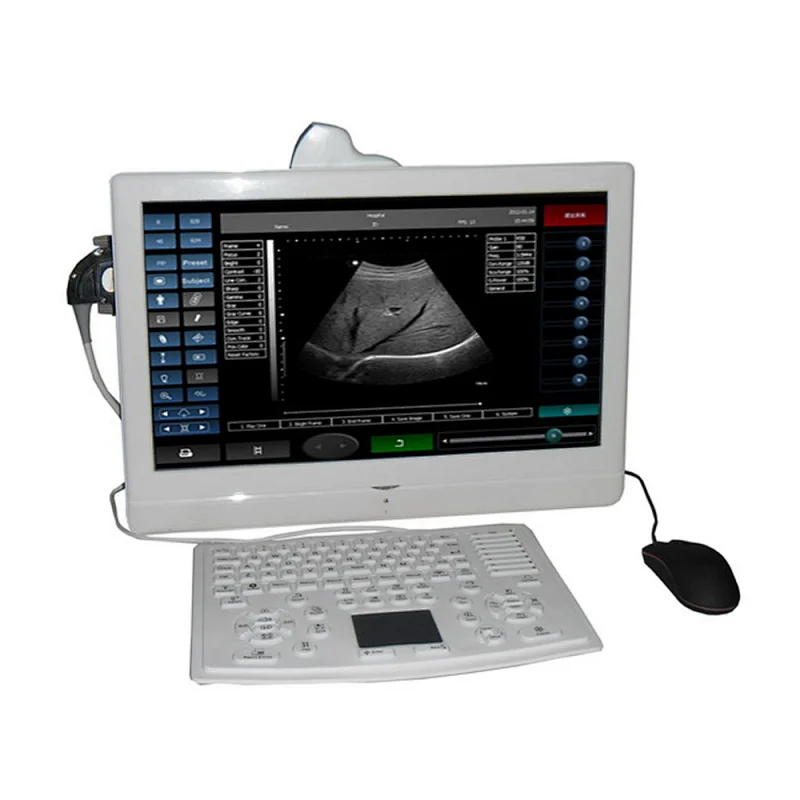

LTUV8 full digital 18.5 inch LCD Vet Touch Screen Ultrasound Scanner
LTUV8 is first ultrasound scanner that with large and touch screen, it is popular for its pretty appearance, powerful functions, and easy to operation.
It is computer based so its functions is powerful, include can create detail diagnosis report, with large volume store, can work with any USB printer. And it also can use as a office computer when not use it as ultrasound scanner.
Its structure also is special, can put on desk, also can wall hanging, and install on a trolley with rocker arm.
Full digital imaging technology
PC based powerful information management
Complete application software packages
Broadband Multi frequency probes
Large volume permanent storage
USB ports & RJ 45 ports
Compatible with laser/inkjet printers
Silica gel waterproof keyboard
18 inch large LCD and touch screen
Monitor: 18.5 inch touch LCD screen
D Maximum Scanning Depth: 250mm
Multi frequency: 5 segment frequencies+THI for check
Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image gray scale: 256 level gray scale
Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0.
Angle scanning: There are 25%, 30%, 35%…100% altogether16 angles for scanning
Dynamic range: Continuous adjustable: 30~120dB, 16 levels in all.
Contrast: 0 100 continuous adjustable
Cine Loop: 64, 128, 256, 512, 1024frame, Auto/manual cine loop
Scanning mode: B, 2B, B/M, M, 4B, ZOOM; Real time Zoom on B mode
Image direction: Up/down/left/right and polarity reversion
Image processing: Pre processing, after processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
Gain: gain: adjustable between 0 100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
Supported output apparatus: 3 USB connector for U Disk, Laser/ink printer, mouse, keyboard; RJ 45 connector for internet and DICOM3.0
Measurement and calculation:
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
Storage: Image storage, cine loop storage, measurement result and report can be stored, storage capacity 4G.
Patient information management: Diagnosis case management, report print, comment library, image output(USB), import data.
Marks: Comment, body mark(140 kinds for different parts' option), arrow.
DICOM Real time Ethernet transmission: This option allows real time transmission by Ethernet. Ethernet capable allows local and internet ultrasound data transmission.
System preset: System preset includes parameter presets of abdominal , GYN, OB ,vascular, cardiac, small organs, andrology, urology, comments, manufacture default settings, system upgrade and maintenance settings.
Weight: Around 6.5kg
Ultrasound scanner host 1 unit
Convex probe(R60, 3.5MHz) 1pcs
Power adapter 1pcs
Computer Keyboard and Mouse 1set
Linear, trans vaginal, micro convex, rectal probe
Trolley with rocker arm
USB laser/ink printer, video printer
Where are our customers?
We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.
|Your satisfaction is our duty! It will be our great honor to serve you.|
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.
We have exported our products to more than 50 countries and built long term partnerships with clients.
We do hope we can offer you more help in medical field and build the long term business relationship with you.
|Delivery Details||1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~5 days to arrive , which is door to door, you no need go out can get LTUV8 full digital 18.5 inch LCD Vet Touch Screen Ultrasound Scanner.|
2.We can also help you ship by air cargo, it takes about 2-7 days to arrive, while you need to go to Air port to take LTUV8 full digital 18.5 inch LCD Vet Touch Screen Ultrasound Scanner.
3.If goods are large quantity and you need not so urgently ,you can choose by sea to save some freight cost which takes you about one month to get LTUV8 full digital 18.5 inch LCD Vet Touch Screen Ultrasound Scanner.
No matter what delivery way ,depending on your actual requirements...
Q:What’s the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What’s your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.
