LTUD05 Automatic High Effective Trolley Ultrasound Bone Densitometer
LTUD05 Automatic High Effective Trolley Ultrasound Bone Densitometer
LTUD05 Automatic High Effective Trolley Ultrasound Bone Densitometer

LTUD05 Automatic High Effective Trolley Ultrasound Bone Densitometer

Model NO.
LTUD05
Price:
USD 6000.00-9000.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Huangpu Port
Quantity:
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Brand Name:LEYTE
  • Model Number:LTUD05
  • Type:Ultrasound Bone Densitometer
  • Measurement parts:1/3 of radius and middle of the Tibia
  • Measurement mode:double emission and double receiving
  • Measurement parameters:Speed of sound (SOS)
  • Measurement Accuracy:≤0.1%
  • Measurement Reproducibility:≤0.1%
  • Measurement time:<10 seconds
  • Probe frequency:1.20MHz
  • Repot mode:color
  • Computer Monitor:22'HD color LED Monitor
  • Type:Trolley
Product Description

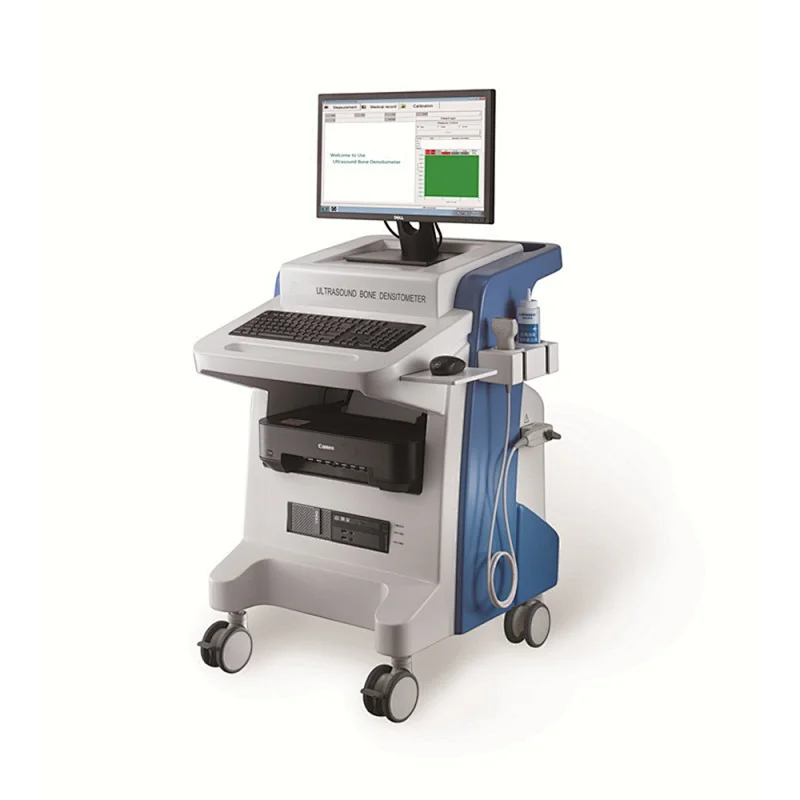

LTUD05 Automatic High Effective Trolley Ultrasound Bone Densitometer

Technical features:

1.Using the full dry technology,  makes diagnostic more convenient.

2.The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.

3.the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal

4.use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data

5.With innovative algorithm, effectively remove clutter and jamming signal, to  get the valid data.

6.With a special correction system, to correct the system error effectively, get more accurate measurement results.

7. multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.

8. it  with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100.

9. English menu

10. the first one pass the EMC test

11. CE certificate.

12. ISO Certificate.

Performance parameter:
1.Measurement parts: 1/3 of radius and middle of the Tibia
2. Measurement mode: double emission and double receiving
3.Measurement parameters: Speed of sound (SOS)
4.Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
5.Measurement Accuracy : ≤0.1%
6.Measurement Reproducibility: ≤0.1%
7.Measurement time: one period <10 seconds
8.Probe frequency : 1.20MHz, United States DuPont technology.
9.Date analysis : BMD-A7 special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
10. Temperature control: Perspex sample with temperature instructions
11. Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
12. Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
13.Daily Calibration: automatic calibrating after power on.
14.All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically .
15.Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
16.repot mode: color
17. Report format: supply A4, 16K ,B5 and more size report
18.Main Unit: the original Dell Rack business Computer. Signal processing and analysis are fast and accurate.
19.Main Unit configuration: CPU: i5, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse.
20. Monitor: Original Dell 22'HD color LED Monitor.
21. Trolley
22.Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
23.Luxury trolley mould design and manufacturer, beautiful and easy to use
24.Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
25.Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
26.Connect to the internet and provide remote services.
27.Environmental test : fix GB/T14710-2009 requirement
28.EMC test: fix YY0505-2012 requirement
29.Safety test: fix GB9706.1-2007,GB9706.9-2008,GB9706.15-200 requirement.
30.Industry standard: fix YY077-2010 requirement.
31.Power and voltage: AC220V±10%,50Hz±1Hz
32.Input power:≤200VA
