LTUB13 trolley three Transducer Ports Musculoskeletal Cardiac Color Doppler
LTUB13 trolley three Transducer Ports Musculoskeletal Cardiac Color Doppler

LTUB13 trolley three Transducer Ports Musculoskeletal Cardiac Color Doppler

Model NO.
USD 7,200.00-7,700.00 / set
Minimum order quantity:
1 set
Supply Ability:
100.0 set / Month
Country of Origin:
  • Type:Doppler Ultrasound Equipment
  • doppler imaging modes:such as PW, CDE, CCD, HPRF.
  • platform:PC platform / Windows XP OS
  • monitor:15"high resolution non-interlaced LCD monitor
  • transducer connectors:Three activated
  • Max frequency:up to 12MHz
  • Cine Loop:Min. 512-frames
  • Local Zoom::2 times
  • Powder supply::100V-130V/220V-240V, 50/60Hz
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Brand Name:leytemed
  • Model Number:LTUB13
  • Material:other
Product Description

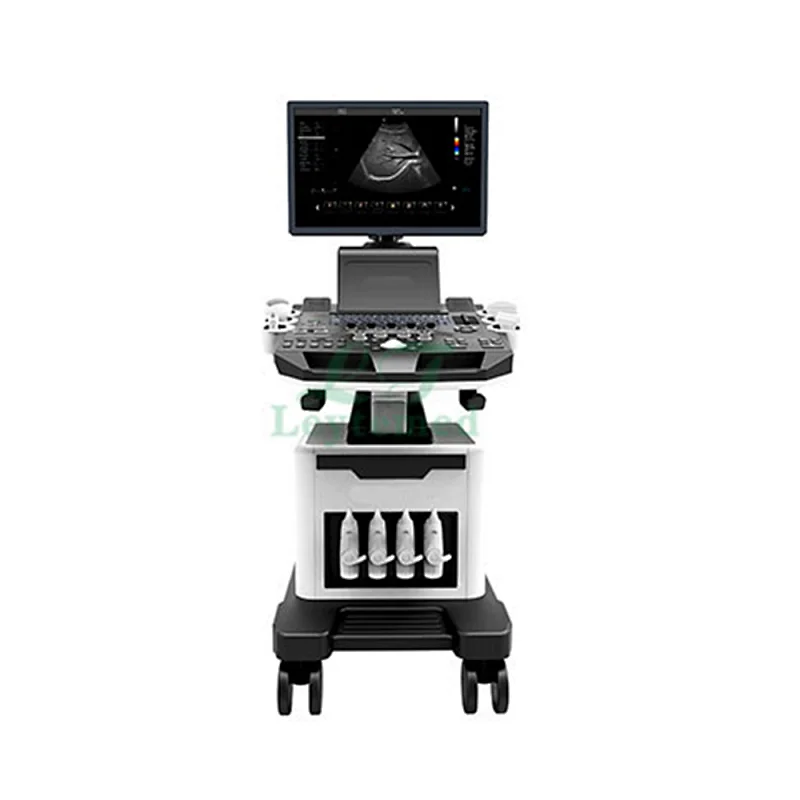

Trolley color doppler ultrasound scanner

Techniacl parameter

Windows 7 embedded operating platform, solid-state hard drive data storage,safe and reliable and boot quickly

Display:19 inch LED medical display

Probe connector:4 active

Operation interface: English (more languages as option)

Display mode: B,B+B,4B,B+M,M,C,PW,CW,4D,B/C,B/C/PW,B/PW

Focus: 4 segments

Body mark: ≥57

Image processing: Up/Down, Left/Right, Angular variation, Reverse

Measurement: Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed.

Application: Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight.

Character display:Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing)

Cine loop: ≥ 1200 frames, continuous playback or view one by one.

Storage:Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device

Gray scale: 256 levels

Puncture guide : Available

Gravel positioning: Available

Dynamic range: 0-270dB

TGC control:8 segments

Pre-processing: Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on.

Post-processing:Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on.

Blind zone: ≤4mm

Max display depth: 320mm

Geometric accuracy:horizontal ≤ 5%, vertical ≤ 5%

Resolution: lateral ≤ 2mm, axial ≤ 1mm

External interface: USB, DICOM 3.0

Display magnification:16 kinds

Frame rate:5-1016fps

Scanning range:5% - 100%

Gain adjustment:Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15

Image optimization: 6 level adjustable

Smoothing: 8 level adjustable

Edge enhancement: 8 level adjustable

PRF:16 level adjustable

Gray scale curve:16 level adjustable

Acoustical power: 15 level adjustable

Hard Disc Storage:120G memory card

Probe frequency range:

3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz

6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz

7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz

6.5Mhz micro-convex probe(R11/R15/R20):2, 3, 3.5, 4, 5.5, 6.5, 7.5, 10Mhz

Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
