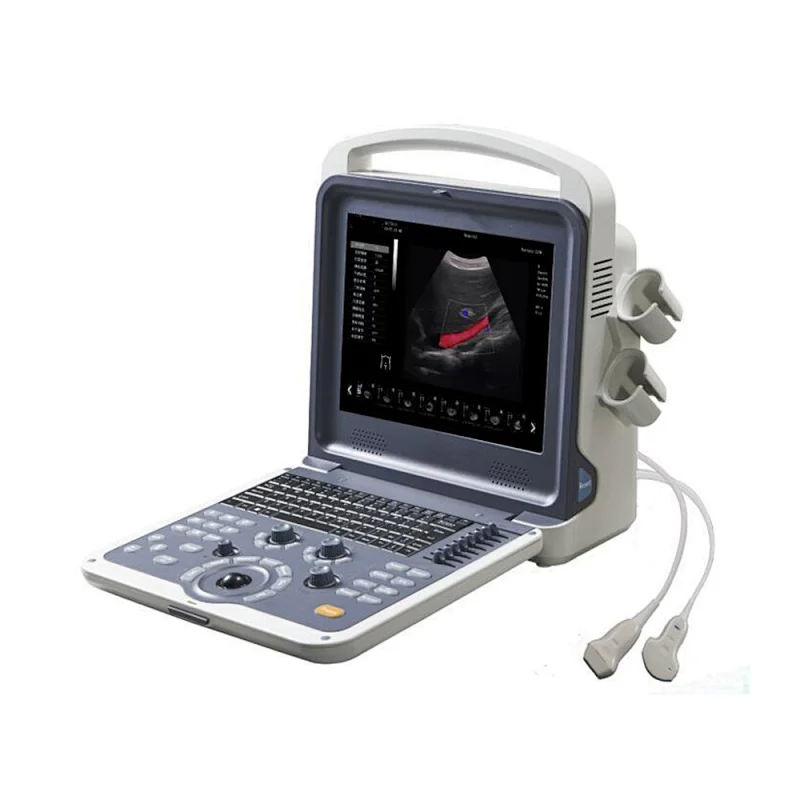

LTUB03 cheapest portable full digital cardiac color doppler ultrasound
LTUB03 cheapest portable full digital cardiac color doppler ultrasound
LTUB03 cheapest portable full digital cardiac color doppler ultrasound

LTUB03 cheapest portable full digital cardiac color doppler ultrasound

Model NO.
LTUB03
Price:
USD 6900.00-7500.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000.0 set / Month
Country of Origin:
HUANGPU
Quantity:
  • Type:Doppler Ultrasound Equipment
  • Display:12' high-resolution LED monitor
  • Special:4D
  • USB ports:2
  • Appearance:Portable
  • Warranty:18 Months
  • Zoom:Real time zooming
  • Display mode:B, B|B,4B, B|M,M,B|D,PW,B|PW, CF,Duplex/Triplex mode.CW (option).4D
  • memory:Cine memory B mode A mode menory card 64G
  • Voltage::AC 100V to 240V
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Brand Name:leytemed
  • Model Number:LTUB03
  • Material:other
Product Description

LTUB03 Portable full digital color doppler ultrasound

Portable Color Doppler Ultrasound Diagnostic System

Portable
Color Doppler full digital ultrasound system, elegant design, advanced imaging technology and diagnose better.
-High Resolution Medical LED monitor
-Clinic versatility
-Powerful workflow
-Ergonomic design

Advanced Technology
-AIO-Auto image optimization
-i-Image: intelligent optimization
-Storage: Direct data transfer to U disk or PC
-iZoom: Instant full screen zoom
-Remote: realtime remote
-MBF: Multi Beam Former
-SA: Synthetic Aperture Ultrasonic imaging

Rich Clinical Images
Rich Clinical Technology
-4D: Real time 4D Imaging
-iClear: Speckle Noise Reduction
-THI: Tissue Harmonic Image
-CDF: Continuous Dynamic Focusing
-Panoramic Image(option)
-Trapezoid Image(option)
-Continuous Wave Doppler(option)

Appearance

-Smart, compact and clamshell design
-12 inch LED monitor
-Backlit operation panel, 8TGC
-Floating keyboard
-Two active probe connectors
-Two probe holders

Technical Specification
Display Model
B, 2B, 4B, B/M, M, B/C, B/C/D, B/D, Duplex/Triplex, 4D
Image Processing Technology
Tissue Harmonic Image, Multi-Signal parallel processing, Image Optimization Technology
Application
Abdomen, GYN&OB, Urology, Vessel, Andrology, Small parts, Cardiology, etc
Supporting Probe
3.5Mhz convex probe, 7.5Mhz linear probe, 3.5Mhz phased array probe, 3.5Mhz Micro-convex probe, 6.5Mhz transvaginal probe, 4D Volume probe, Rectal probe
Language
English, Chinese, Spanish, Russian, Persian
Battery
Rechargeable Lithium, For about 3 hours
Gray
256
Probe
128 Element
Peripheral Port
VGA, HSUSB, Dicom, DVI, COM

Probe

Transducer Types
-3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)
-7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)
-3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)
-6.5Mhz transvaginal probe (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)
-3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)
-4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)
Zoom
-Real time zooming
-10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0
-Selectable zooming position

Focus

-Continuous dynamic focus
-1~16 selectable transmit focus
-Acoustic lens focus
-1, 2, 3, 4 focus

Memory

Cine‐memory
-B‐mode
-M‐mode
-memory card 64G

Physical Features

Connectivity
-Video out port
-DVI out port
-VGA out port
-2 USB port
-DICOM 3.0

Power Requirements
-Voltage: AC 100V to 240V
-Frequency: 47~63Hz
-Rated Power: ≤120VA

Operation Conditions
-Ambient temperature: 0℃to +40℃
-Relative humidity: 38% to 85%
-Atmospheric Pressure: 700hPa to 1060hPa
