Model NO.
LTM605A
Price:
USD 1,500.00-2,000.00 / set
Minimum order quantity:
1 set
Supply Ability:
999 set / Month
Country of Origin:
Huangpu
Quantity:
  • Type:Examination Therapy Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Leyte
  • Model Number:LTM605A
  • Power:100V-250V, 50Hz/60 Hz
  • Operation Working temperature::10 -40°C (23 to 104°F)
  • Humidity::30 -75% (non-condensing)
  • Dimensions::230mm(W)x160mm(H) x50mm(D)
  • Battery Data:Lithium ion internal battery, rechargeable
  • Weight::1150 grams
  • Capnography Measuring Data:EtCO2/CO2
  • Certificate:ISO .CE
  • Service:OEM
  • MOQ:one sample is ok
Product Description

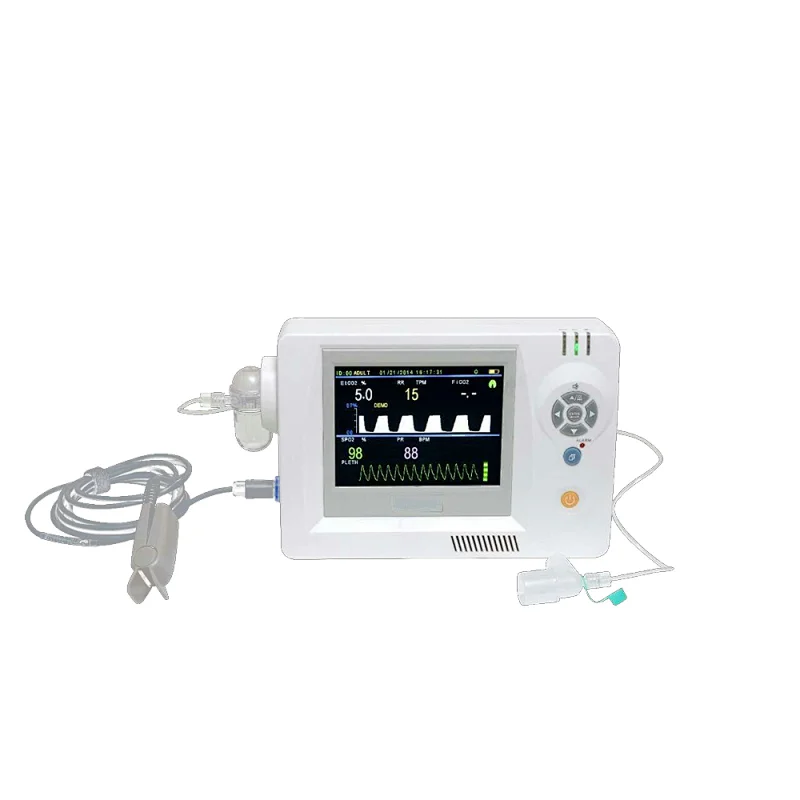

LTM605A Topsale Medical portable Capnograph Monitor

Main Features

● Big screen LCD, clearly displays the EtCO2/CO2,Respiration rate,andSpO2,Pulse

● EtCO2 Monitor (Capnograph)-LTM605A  technology of infrared ray gas analysis:

   ○ Compensation system for temperature and pressure and Zero readjustment system

      all these insure the accuracy and stability

   ○ Balance gas compensation makes minimum influence to other gases.

   ○ Lung pressure and temperature compensation (BTPS compensation) are selectable

   ○ Pump flux is selectable for adult and infant

● KPA , mmHg or % are selectable.

● Audio-optical alarm for exceeding limits and apnea

● 24 hours trend diagram keeps still available after power-off

● Side stream mode, keeping work under the heavy humid environment, also suitable

   for intubatton patient.

● Data output via RS-232 port

● Portable and lithium battery

● Digital SpO2 system optional accuracy can be insured even under the movement or

   weak perfusion.

● Easy to connect and fix with anesthetic machine.

Technical data

Power

      AC input:

           100V-250V, 50Hz/60 Hz

      AC power Consumption:

           6.6W when battery is not being charged,

           16W when battery is being charged

Operation

      Working temperature:

           10 -40°C (23 to 104°F)

      Humidity:

           30 -75% (non-condensing)

      Atmospheric pressure:

           86-106kPa

Battery Data

     Type:

          Lithium ion internal battery, rechargeable

      Battery capacity:

         12V,1800mAh, 8 hours (approximately)

      Charging time:

          4 hours from empty to full

Physical Data

      Dimensions:

          230mm(W)x160mm(H) x50mm(D)

     Weight:

          1150 grams

Capnography Measuring Data

     EtCO2/CO2

          Range:

               0-99mmHg,or 0-13kPa,or 0-13%

          Accuracy:

               ±2mmHg when 0-5%

         ±10%(reading) when >5%

          Update:

               Once every breath

          Trend length:

               24hours

      Respiration rate

           Range:

                3 -150 t/min

           Accuracy:

                the bigger value of ±10%(reading) or ±2 times/min

           Trend length:

                24 hours

      PUMP Flow :

             selectable from 50-250cc/min

Pulse Oximeter Data

      Oximetry Saturation

           Range:

                0-99%

           Accuracy:

               ±3% when 50-79%

               ±2% when 80-99%

                              Trend length:

               24 hours

Pulse Rate

           Range:

               30-250bpm

           Accuracy:

                the bigger value of ±2bpm or ±5%(reading)

           Trend length:

                24 hours
