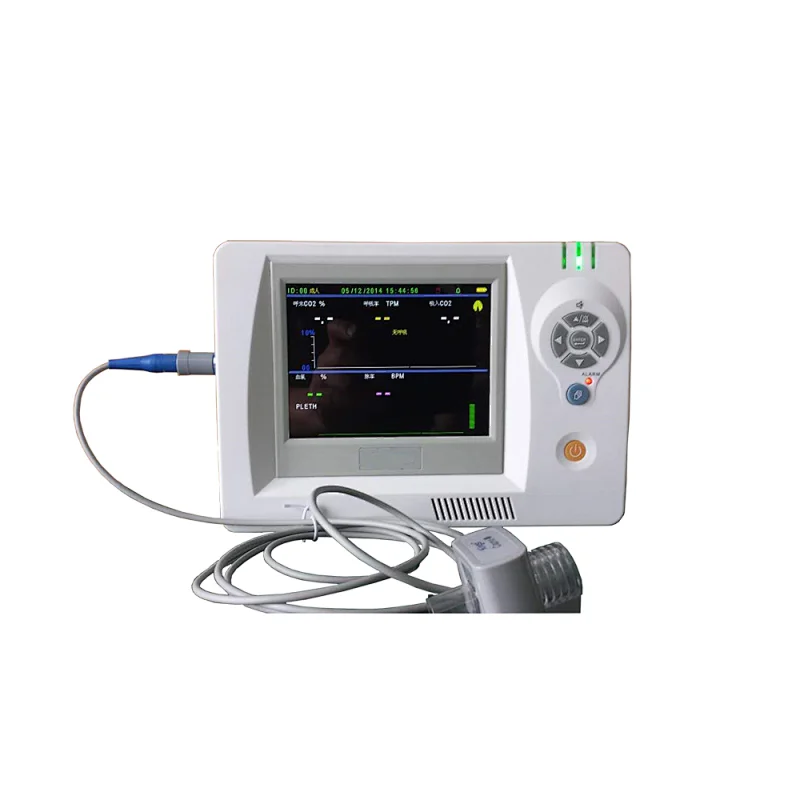

LTM 605B Main stream EtCO2 Monitor (Capnograph)
LTM 605B Main stream EtCO2 Monitor (Capnograph)
LTM 605B Main stream EtCO2 Monitor (Capnograph)

LTM 605B Main stream EtCO2 Monitor (Capnograph)

Model NO.
LTM 605B
USD 1500.00-2000.00 / set
Minimum order quantity:
1 set
Supply Ability:
99999 set / Year
Country of Origin:
  • Type:Examination Therapy Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Leyte
  • Model Number:LTM 605B
  • Power:100V-250V, 50Hz/60 Hz
  • Operation Working temperature::10 -40°C (23 to 104°F)
  • Humidity::30 -75% (non-condensing)
  • Dimensions::230mm(W)x160mm(H) x50mm(D)
  • Battery Data:Lithium ion internal battery, rechargeable
  • Weight::1150 grams
  • Capnography Measuring Data:EtCO2/CO2,Respiration rate
  • Certificate:ISO .CE
  • Service:OEM
Product Description

LTM 605B Main stream EtCO2 Monitor (Capnograph)



Big screen LCD, clearly displays the EtCO2/CO2,Respiration rate

EtCO2 Monitor (Capnograph)-LTM605B  technology of infrared ray gas analysis:

   1. Compensation system for temperature and pressure and Zero readjustment system

      all these insure the accuracy and stability

   2. Balance gas compensation makes minimum influence to other gases.

   3. Lung pressure and temperature compensation (BTPS compensation) are selectable

   4. Pump flux is selectable for adult and infant

KPA , mmHg or % are selectable.

Audio-optical alarm for exceeding limits and apnea

24 hours trend diagram keeps still available after power-off

Mainstream modemore convenient, keeping work under the heavy humid environment, also suitable

   for intubatton patient.

Data output via RS-232 port

Portable and lithium battery

Digital SpO2 system optional accuracy can be insured even under the movement or

   weak perfusion.

Easy to connect and fix with anesthetic machine.


Technical data


      AC input:

           100V-250V, 50Hz/60 Hz

      AC power Consumption:

           6.6W when battery is not being charged,

           16W when battery is being charged


      Working temperature:

           10 -40°C (23 to 104°F)


           30 -75% (non-condensing)

      Atmospheric pressure:


Battery Data


          Lithium ion internal battery, rechargeable

      Battery capacity:

         12V,1800mAh, 8 hours (approximately)

      Charging time:

          4 hours from empty to full

Physical Data


          230mm(W)x160mm(H) x50mm(D)


          1150 grams

Capnography Measuring Data



               0-99mmHg,or 0-13kPa,or 0-13%


               ±2mmHg when 0-5%

         ±10%(reading) when >5%


               Once every breath

          Trend length:


      Respiration rate


                3 -150 t/min


                the bigger value of ±10%(reading) or ±2 times/min

           Trend length:

                24 hours

      PUMP Flow :

             selectable from 50-250cc/min


Click to contact us

Our professional sales staff to help you make better purchasing decisions

click to order1000.jpg

Our Company

Guangzhou Leyte Electronic Co., Limited




Quality Workplace
Good Labor relations
 Testing equipment




Speak fluent English
Well-trained and professional sales
More than 10 years of experience engineers

team +1.jpg

Our professional sales staff to help you make better purchasing decisions



Customer Photo

our customer.jpg

Where are our customers?

We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.

371 220.jpg

Your satisfaction is our duty! It will be our great honor to serve you.



















Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.
We have exported our products to more than 50 countries and built long term partnerships with clients.
We do hope we can offer you more help in medical field and build the long term business relationship with you.

Packing & Delivery


 DHL/EMS/FedEx/TNT/Ups etc.
Delivery Details1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~5 days to arrive , which is door to door, you no need go out can get LTM 605B Main stream EtCO2 Monitor (Capnograph).
2.We can also help you ship by air cargo, it takes about 2-7 days to arrive, while you need to go to Air port to take LTM 605B Main stream EtCO2 Monitor (Capnograph).
3.If goods are large quantity and you need not so urgently ,you can choose by sea to save some freight cost which takes you about one month to get LTM 605B Main stream EtCO2 Monitor (Capnograph).


No matter what delivery way ,depending on your actual requirements...

Our Service


Pre-Sales Service

* For all  your  inquires  about  us, we will reply you in detail within 24 hours.

* We  own  well-trained   and   professional   sales   who  can speak fluent English.

*We offer  OEM  services.  We  can  print  your  own  logo  on LTM 605B Main stream EtCO2 Monitor (Capnograph),also can customize the retail box  packing and other things.

* View our company.

After-Sales Service

* We have very experienced engineers ,can help you better use LTM 605B Main stream EtCO2 Monitor (Capnograph).Training how to instal the machine, training how to use the machine.

*If has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost.

*We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault.

*If need parts for replacement, we will send to you.

*If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.


























Q:What’s the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What’s your delivery time?
A: Generally it is 10 days if the goods are in stock.

or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.
