LTM 605A Topsale medical portable etco2 patient monitor for patitent
LTM 605A Topsale medical portable etco2 patient monitor for patitent
LTM 605A Topsale medical portable etco2 patient monitor for patitent

LTM 605A Topsale medical portable etco2 patient monitor for patitent

Model NO.
LTM 605A
USD 1500.00-2000.00 / unit
Minimum order quantity:
1 unit
Supply Ability:
400000 unit / Year
Country of Origin:
  • Place of Origin:CN;GUA
  • Model Number:LTM 605A
  • Brand Name:leyte
  • Type:First-Aid Devices
  • Display screen:clearly display the etco2 and co2
  • Easy to connect and fix:with anesthetic machine
  • battery:Portable and lithium
  • 24 hours trend diagram: keeps still available after power-off
  • mainstream probe:also can be used and more convenient
  • AC input:100v to 250v ,50hz or 60hz
  • Battery capacity: 12V,1800mAh, 8 hours (approximately)
  • Charging time: 4 hours from empty to full
  • Dimensions: 230mm*160mm*50mm
  • Weigh:1150grms
Product Description

LTM 605A Topsale medical portable etco2 patient monitor for patitent

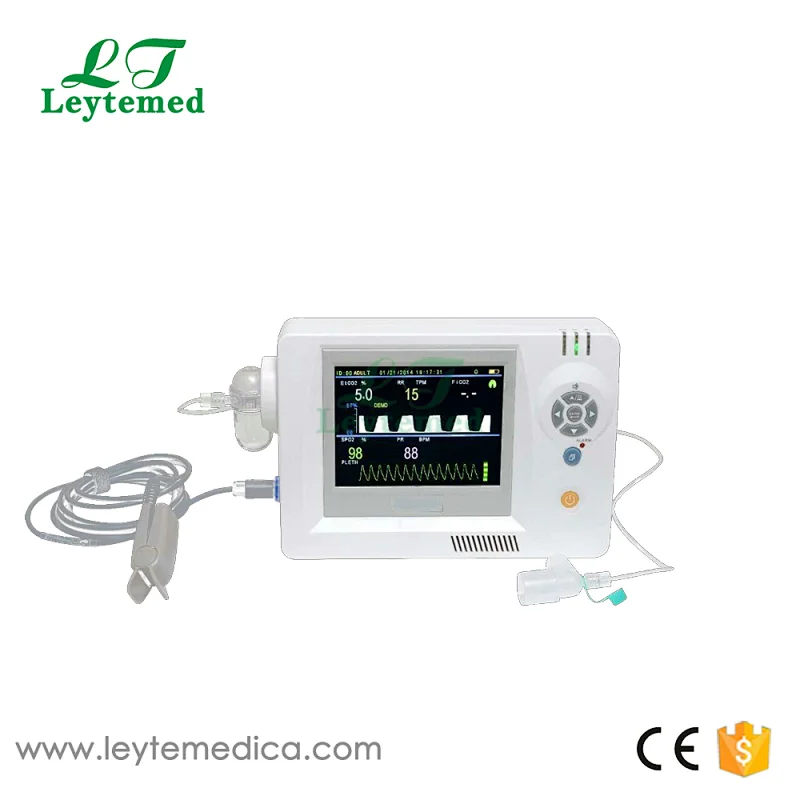

Big screen LCD, clearly displays the EtCO2/CO2,Respiration rate,andSpO2,Pulse(optional).

EtCO2 Monitor -LTM605A  technology of infrared ray gas analysis:

Compensation system for temperature and pressure and Zero readjustment system all these insure the accuracy and stability

Balance gas compensation makes minimum influence to other gases.

Lung pressure and temperature compensation (BTPS compensation) are selectable

Pump flux is selectable for adult and infant

KPA , mmHg or % are selectable.

Audio-optical alarm for exceeding limits and apnea

24 hours trend diagram keeps still available after power-off

Side stream mode, keeping work under the heavy humid environment, also suitable for intubatton patient.

Mainstream probe also can be used and more convenient.

Data output via RS-232 port

Portable and lithium battery

Digital SpO2 system optional accuracy can be insured even under the movement or weak perfusion.

Easy to connect and fix with anesthetic machine.

Technical data


      AC input:

           100V-250V, 50Hz/60 Hz

      AC power Consumption:

           6.6W when battery is not being charged,

           16W when battery is being charged


      Working temperature:

           10 -40°C (23 to 104°F)


           30 -75% (non-condensing)

      Atmospheric pressure:


Battery Data


          Lithium ion internal battery, rechargeable

      Battery capacity:

         12V,1800mAh, 8 hours (approximately)

      Charging time:

          4 hours from empty to full

Physical Data


          230mm(W)x160mm(H) x50mm(D)


          1150 grams

Capnography Measuring Data



               0-99mmHg,or 0-13kPa,or 0-13%


               ±2mmHg when 0-5%

         ±10%(reading) when > 5%


               Once every breath

          Trend length:


      Respiration rate


                3 -150 t/min


                the bigger value of ±10%(reading) or ±2 times/min

           Trend length:

                24 hours

      PUMP Flow :

             selectable from 50-250cc/min

Pulse Oximeter Data (optional)

      Oximetry Saturation




               ±3% when 50-79%

               ±2% when 80-99%

           Trend length:

               24 hours

     Pulse Rate




                the bigger value of ±2bpm or ±5%(reading)

           Trend length:

                24 hours
