LTLP06 digital CCD Gel Document Imaging System
LTLP06 digital CCD Gel Document Imaging System
LTLP06 digital CCD Gel Document Imaging System

LTLP06 digital CCD Gel Document Imaging System

Model NO.
USD 4100.00-4300.00 / set
Minimum order quantity:
1 set
Supply Ability:
100.0 set / Month
Country of Origin:
guangzhou for BK04S-3C digital CCD Gel Document Imaging System
  • Effective pixels:1280*1024
  • Pixel density:10 bit
  • Pixel Size:5.4*5.4um
  • Resolution:1.4 megapixels
  • S/N Ratio:more than 56db
  • Camera:digital CCD
  • Filter:590nm
  • UV light transmission area(W*L):250*200mm
  • Visible light transmittance area(W*L):250*210mm
  • Reflectance UV wavelength:254,365mm
  • Type:Genes & Life Science Equipments
  • Instrument classification:Class II
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Place of Origin:CN;GUA
  • Brand Name:leytemed
  • Model Number:LTLP06
Product Description

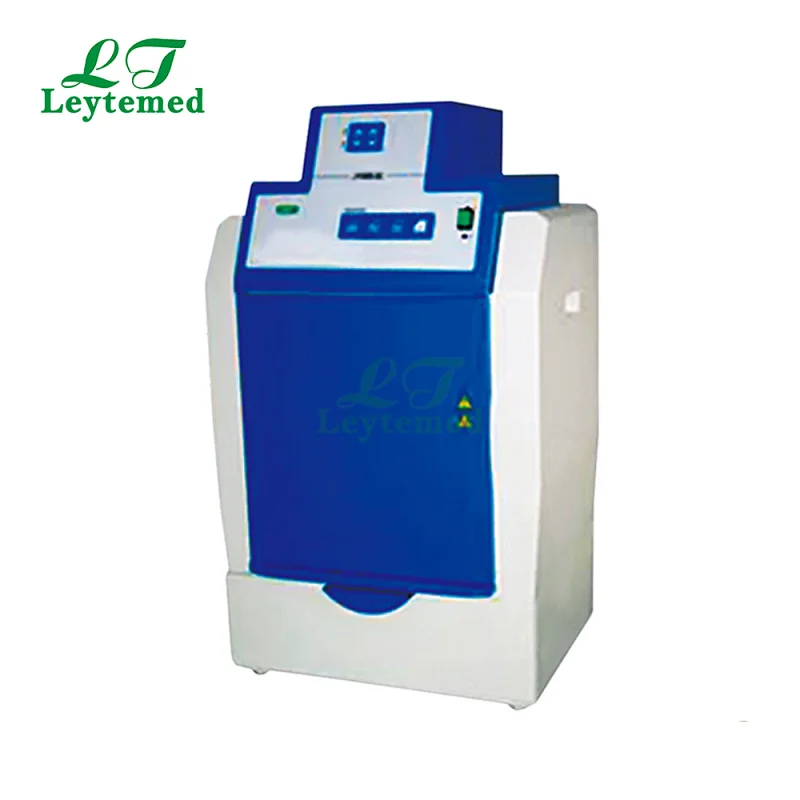

Digital CCD Gel Document Imaging System

Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user's requirements.

Main Features

1. CCD with lower lux and high-resolution.

2. Six time zoom lens and simple to enlarge and shrink gel photos.

3. The gel can be placed in the center position by the indicator.

4. Intelligent control box:

The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.

The UV light can shut down when the door is opened and reactivate when the door is shut

The UV light protection system can shut down the lights with 15 minute delay automatically.

Drawer-style gel platform.

5.A multi-layer gel-filter effectively filters background noise

Technical Parameters
Effective pixels
Pixel density
10 bit
Pixel Size
1.4 megapixels
S/N Ratio
more than 56db
Detect the double chain DNA of EB staining below 20pg
Low illumination and high resolution digital CCD
Zoom lens
F=1:1.2,2/3 inch 6 times zoom lens
UV light transmission area(W*L)
Visible light transmittance area(W*L)
Transmission UV wavelength
Reflectance UV wavelength
Transmission UV lamp power
Reflectance UV lamp power
RS232 interface
Power supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
External Size(L*W*H)
Package Size(L*W*H)
