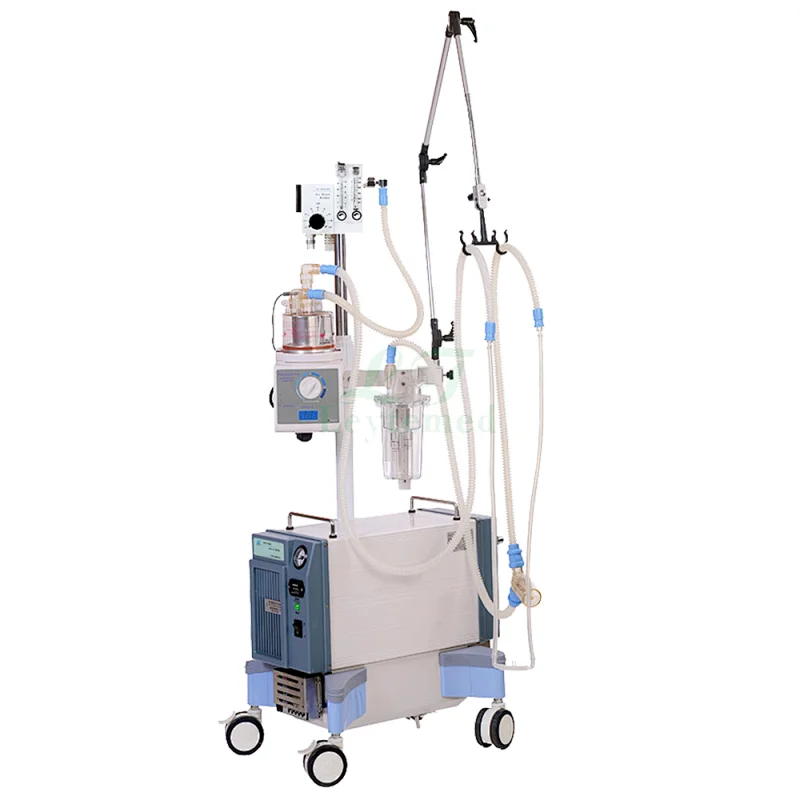

Neonate Infant Bubble CPAP
Bubble CPAP is a sort of special medical equipment for supporting of babies' breath which devised and manufactured based on the wide application of closed continuous NCPAP in department of pediatrics. It uses on the course of treatment of Nasal-CPAP for premature, neonate, infant to children below 14 year old. The mode of CPAP can reduce babies' WOB effectively, while keeping the autonomous respiration well.
Supply a safe and controllable FIO2;
Keep the FRC effectively;
Reduce infant's WOB;
Reduce the need of invasive mechanical ventilation;
Supply better warm and humid gas;
Reduce the occurrence rate of the CLD;
Improve the physical sighs, such as height, weight.
Matching solution of Medical Air Compressor:
Max exhausting pressure: 0.7MPa
Output pressure: 0.20MPa~0.30MPa
Water capacity of Generator: 500ml or more
Alarm:the differential pressure> 0.1MPa, sound alarm
Pressure of oxygen and air: 0.3MPa~0.4MPa
Power: 220V AC 50Hz
Certification: ISO 13485 CE
Matching with Medical Electric Respiratory humidifier(PN-2000F/FA)
Working temperature: 30℃~37℃
Max temperature of heating plate: 85℃
Capacity of Chamber:280ml(F-Adult); 230ml(FA-Infant)
Max flow: 180L/min
Max working pressure: 2kPa
1. It is easy to set the oscillating gas pressure from 3cmH2O to 10cmH2O through adjusting the CPAP pressure bar.
2. The automatic regulating mechanism of water-level ensure the constant CPAP pressure.
3. The dismountable chamber is very convenient.
