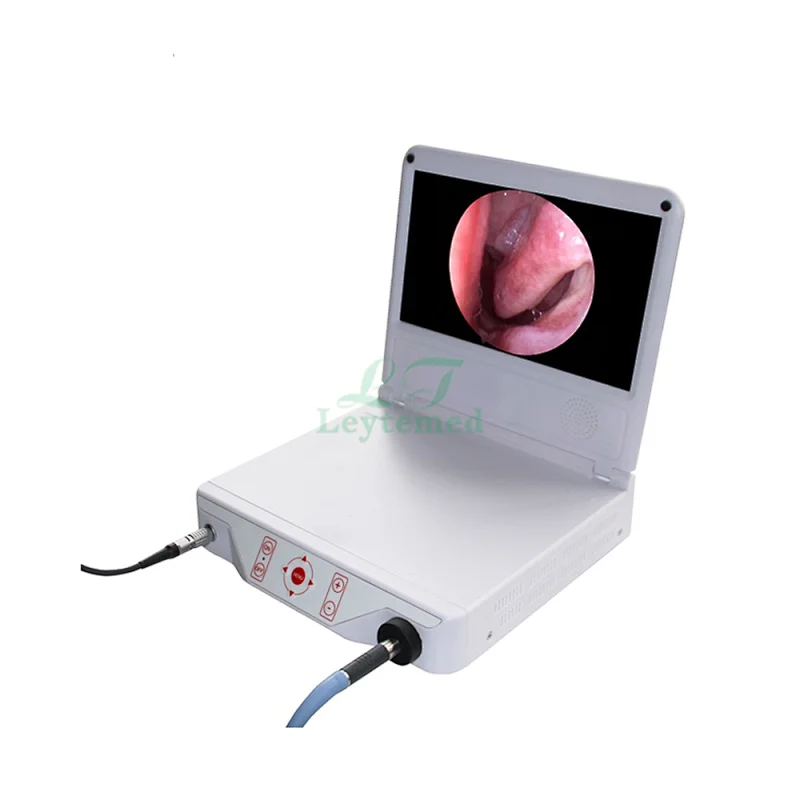

LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center
LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center

LTES18 Endoscope camera/LED light source/Monitor/HD recorder ENT endoscope Video center

Model NO.
LTES18
Price:
USD 980.00-1,000.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000.0 set / Month
Country of Origin:
Huangpu
Quantity:
  • Type:Electronic Endoscope
  • Camera:Horizontal resolution::700 lines
  • Input power::35VA;
  • Power supply::AC 220V 50Hz;
  • Effective pixel::N:795(H)*596(V);
  • SNR::≥50dB
  • White balance::Automatic /Manual
  • LED light source::Brightness: 190,000Lux
  • Color temperature::≥6500k
  • Certificate::ISO .CE
  • Power Source:Electric
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Shelf Life:1years
  • Quality Certification:ce
  • Instrument classification:Class II
  • Safety standard:None
  • Place of Origin:CN;GUA
  • Brand Name:Leytemed
  • Model Number:LTES18
  • Material:other
Product Description

Video Center For Endoscope

Standard set
Endoscope camera & LED light source & Monitor & HDrecorder
Camera:Horizontal resolution: 700 lines;
Input power: 35VA;
Power supply: AC 220V 50Hz;
Effective pixel: N:795(H)*596(V);
SNR: ≥50dB
Anti-interference
White balance: Automatic /Manual
LED light source:Brightness: 190,000Lux
Color temperature: ≥6500k
Light image temperature: ≤80℃
Digital display Port: Camera head port;
Light cable socket; USB port;BNC port;
HD recorder:Recordering format:MP4
External U flash disk:Max 64G
External mobile HDD:Max 2T
Medical endoscopy system of integrated endoscope for diagnose .
Main application: ENT
Main Characteristic:
1. Endoscope camera is up to 700lines.
2. LED light source:Long service life is more than 20,000hour
3. High-quality recorder.
4. Easy to carry and operate.
Standard Monitor
LCD screen
10”
Resolution
1280(RGB)*800
Scanning frequency
60Hz
Port
Camera head port- 1pc;
Endoscope CCD Camera
Image device
1/3 CCD
SNR
≥50dB
SY
PAL
Brightness
ODS Adjustable
Total Pixels
N:811(H)*508(V)
P:795(H)*596(V)
Backlight processing
Wide dynamic (rank adjustable) / backlight compensation/strong inhibition
Effective Pixels
N:768(H)*494(V)
P:752(H)*582(V)
Synchronous system
Internal Synchronization
Scanning system
2:1 interlaced
White balance
ATW1/ATW2/MANUA
system
Scan frequency
N:15.734KHZ 59.94HZ
P:15.635KHZ 50HZ
Acutance &saturation
Turn on/off grade adjustable
Scanning mode
Interlaced scanning
AG
Low/medium/high/
off grade adjustable
Horizontal Resolution
700TVL
Minimum Illumination
F1.2≤0.5lx
Cold LED Light Source
Input power
30VA
Light output hole diameter
φ (10±0.10) mm
Power supply
ac. 100-240V 50/60Hz Tolerance±1%
Light image temperature
≤80℃
Light source
LED
Working conditions
5℃~ +40℃
Effective optical power
≥100mW
Lamp service life
≥20000h
Brightness
≥190,000Lux
Storage conditions
-40℃ ~ +55℃
Color temperature
≥6500K
Continuous working hours
>4h
HD Recorder
Specifications
Parameters
External U flash disk
Max 64G
Recordering format
MP4
External mobile HDD
Max 2T
Recordering quality
MAX 18Mbs@1080P 30Fps
Recorder interface
Support USB disk & removable hard disk
