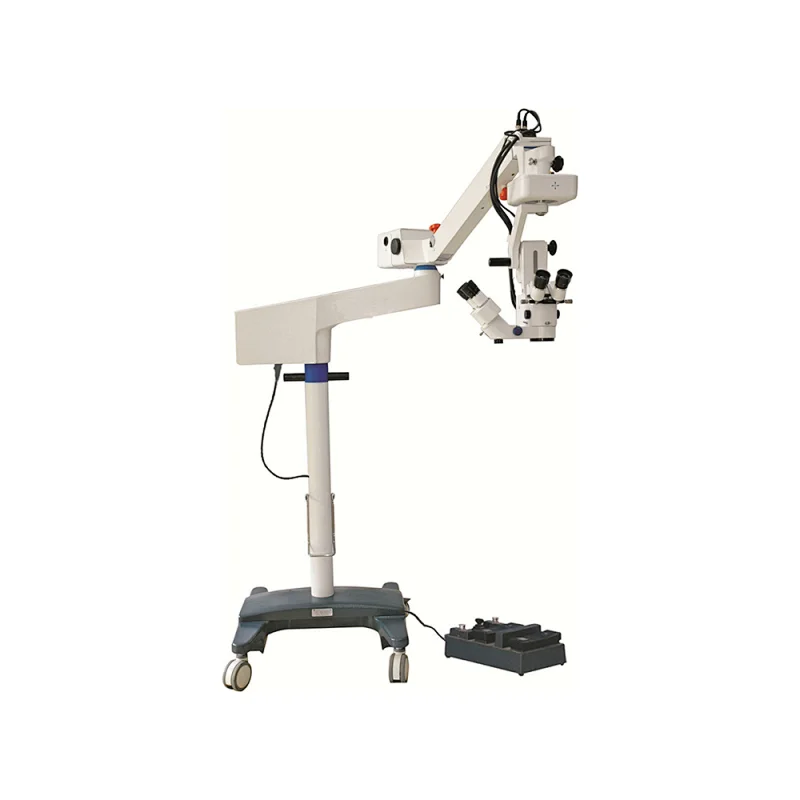

LTAM04 Medical eye operating microscope
LTAM04 Medical eye operating microscope
LTAM04 Medical eye operating microscope

LTAM04 Medical eye operating microscope

Model NO.:
LTAM04
Price:
USD 9750.00-9900.00 / set
Minimum order quantity:
1 set
Supply Ability:
100.0 set / Month
Country of Origin:
huangpu
Quantity:
  • Eyepiece Magnification::12.5*/18B
  • Adjustable Range for Pupil Distance::50mm-75mm
  • Magnification for Assistant Microscope::4X,6X,10X,16X,25X
  • Focus::f=200mm
  • Adjustable Diopter::±7D
  • Maximal Resolution::119LP/mm
  • Working Distance::190mm
  • Reaching Range of Arm::1240mm
  • Adjustable Vertical Range::850mm-1350mm
  • Power::330VA
  • Theory:Biological Microscope
  • Drawtube:BINOCULAR
  • Place of Origin:CN;GUA
  • Brand Name:Leytemed
  • Model Number:LTAM04
Product Description

Medical eye operating microscope

The product is a double binocular operation microscope designed for two men.It has excellent optical performance and it is comfortable to be used.

Characteristics:

1.Unique optical balanced technology effectively improves the  color reversion and reduces surgeon's tireness in operation.

2.Imported optical lens reduces the optical aberration and greatly improve the image clarity and field of view.

3.Fine focusing knob is under the bottom of assistant binocular. The image of the assistant's microscope can be focused independently of the main surgeon, to avoid different diopters.

4.Adjustment of magnifications,focusing,translation and turning on/off are all operated by the foot switch

5.Mildewproof technology is applied to protect the lenses.

6.Independent electrical control box has the function of automatical diagnosis,which is very convenient for installation and repairing.

7.20°oblique illumination can also be used as slit illumination.Slit width is continuously adjustable and slit angle is 360°rotation.

Specifications:
Eyepiece Magnifications
12.5×/18B
Objective Lens
f=200
Working Distance
190mm
Magnifications for Main Microscope
4×,6×,10×,16×,25×
Magnifications for Assistant Microscope
6×,10×,14×
Diameter of Field
F58mm,F38mm,F23mm,F14mm,F9mm
Adjustable Diopter
±7D
Adjustable Range for Pupil Distance
50mm~75mm
Depth of Field
2mm ~ 18mm
Maximal Resolution
119 LP/mm
Focus for Assistant Microscope
≥30mm
Illumination Source
12V/100W,cold reflection halogen bulb for medical use
Illumination Type
6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination
≥50000lx
Oblique Illumination
≥45000lx
Reaching Radius of Arm
1240mm
Adjustable Vertical Range
850mm~1350mm
Fine Focus Speed and Range
≤2mm/s,≥50mm
Speed for X/Y and Range
≤2mm/s,50mm×50mm
Voltage
AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power
330VA
Fuse
AC250V T4.0A,AC125V T8.0A
Electrical Safety Standard
Executive standard :GB9706.1-2007,Class I
Packing Volume
0.786m3,5cartons
Total Gross Weight
213kg
