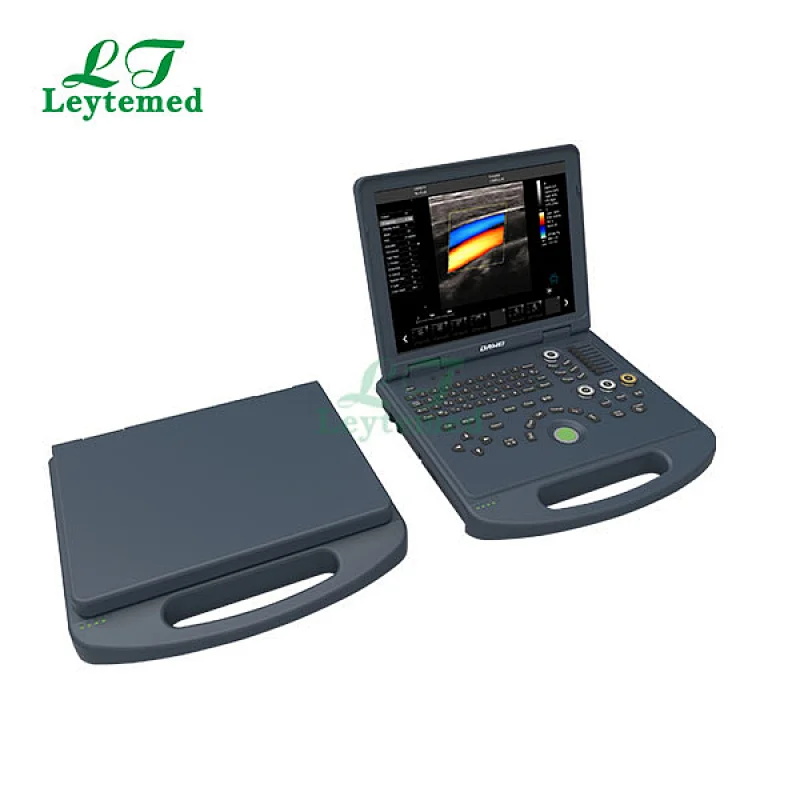

Display:15 inch LED medical display
Probe connector:Single 1
Operation interface:English (more languages as option)
Display mode:B,B+B,4B,B+M,M,C,PW,4D,B/C,B/C/PW,B/PW
Focus:4 segments
Body mark:≥57
Image processing:Up/Down, Left/Right, Angular variation, Reverse
Measurement:Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed.
Application:Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight.
Character display:Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing)
Cine loop:≥ 1200 frames, continuous playback or view one by one.
Storage:Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device
Gray scale:256 levels
Puncture guide :Available
Gravel positioning:Available
Dynamic range:0-270dB
TGC control:8 segments
Pre-processing:Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on.
Post-processing:Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on.
Blind zone:≤4mm
Max display depth:320mm
Geometric accuracy:horizontal ≤ 5%, vertical ≤ 5%
Resolution:lateral ≤ 2mm, axial ≤ 1mm
External interface:HDMI, USB, DICOM 3.0
Display magnification:16 kinds
Frame rate:5-1016fps
Scanning range:5% - 100%
Gain adjustment:Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15
Image optimization:6 level adjustable
Smoothing:8 level adjustable
Edge enhancement:8 level adjustable
PRF:16 level adjustable
Gray scale curve:16 level adjustable
Acoustical power:15 level adjustable
Weight:NW: 6.3kg GW: 15kg
Packing size:60*50*27cm
