LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor
LT8000S Multi channel 12.1inch wire/wireless patient monitor

LT8000S Multi channel 12.1inch wire/wireless patient monitor

Model NO.
LT8000S
Price:
USD 360.00-450.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Huangpu
Quantity:
  • Type:Examination Therapy Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Warranty:1 Year
  • After-sale Service:Online technical support
  • Brand Name:LEYTE
  • Model Number:LT8000S
  • screen:12.1"color TFT
  • Standard::ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature
  • Supporting:wire or wireless network
  • Anti-defibrillation design:yes
  • NIBP over pressure protection:yes
  • rechargeable battery,:yes
  • Power supply:a.c.220V±22V, 50Hz ±1Hz
  • display:OxyCRG dynamic view
  • G.W.:8KGS
  • Patient info.:Input
Product Description

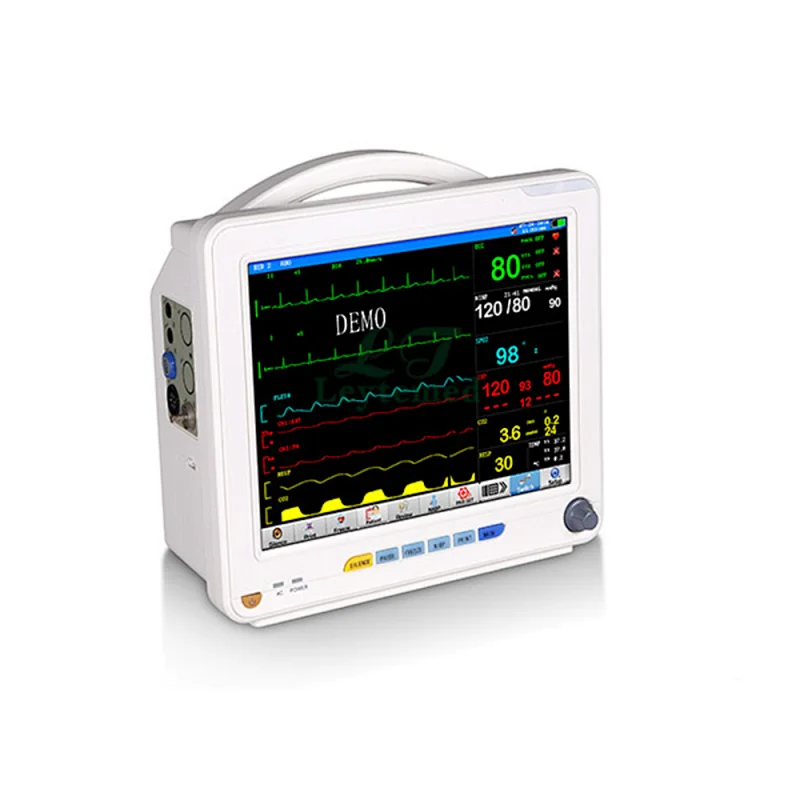

LT8000S Multi channel 12.1inch wire/wireless patient monitor

Main Features

12.1"color TFT screen

Multi‐channel display

Big font interface

ST and arrhythmia analysis

Drug dose calculation and titration table

OxyCRG dynamic view display

Respiration monitoring with apnea alarms

Alarm review, arrhythmia review

Patient info. Input

Anti‐defibrillation design

NIBP over pressure protection

Plug‐in rechargeable battery, AC/DC available.

Supporting wire or wireless network.

Technical Specifications

ECG

Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection: I, II, III, avR, avL, avF, V

Waveform: 2 ch

Lead mode: 3 Leads ( R, L, F or RA, LA, LL)

Lead selection: I, II, III,

Waveform: 1 ch

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV,20mm/mV, auto


HR and Alarm Range: Adult    15 ~ 300 bpm

                  Neo/Ped    15 ~ 350 bpm

Accuracy: ±1% or±1bpm, which is greater

Resolution: 1 bpm

Sensitivity: > 200 (uVp-p)

Differential Input Impedance: > 5 MΩ


CMRR: Monitor > 105 dB

       Operation > 105 dB

       Diagnosis > 85 dB

Electrode offset potential: ±300mV

Leakage Current: < 10 uA

Baseline Recovery: < 3 S After Defi.

ECG Signal Range: ±8 m V ( Vp-p )

Bandwidth: Surgery    1 ~ 20 Hz

          Monitor     0.5 ~ 40 Hz

          Diagnostic  0.05 ~ 130 Hz

Calibration Signal: 1 (mVp-p),  Accuracy:5%

ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV

ARR Detecting: Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,BRADY, MISSED BEATS,PNP, PNC,Alarm Available,Review Available


Respiration

Method: Impedance between R-F(RA-LL)

Differential Input Impedance: > 2.5 MΩ

Measuring Impedance Range: 0.3~3 Ω

Base line Impedance Range: 200~4 KΩ

Bandwidth: 0.1~2.5Hz

Resp. Rate: Measuring and Alarm Range

          Adult 0 ~ 120 Brpm

          Neo/Ped 0 ~ 150 Brpm

          Resolution 1 Brpm

          Accuracy ±2 Brpm

Apnea Alarm: 10 ~ 40 S

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40 ~ 240 bpm

Alarm Type: SYS, DIA, MEAN


Measuring and alarm range:

                       Adult Mode

                       SYS 40 ~ 270 mmHg

                       DIA 10 ~ 215 mmHg

                       MEAN 20 ~ 235 mmHg

                       Pediatric Mode

                       SYS 40 ~ 200 mmHg

                       DIA 10 ~ 150 mmHg

                       MEAN 20 ~ 165 mmHg

                       Neonatal Mode

                       SYS 40 ~ 135 mmHg

                       DIA 10 ~ 100 mmHg

                       MEAN 20 ~ 110 mmHg

Resolution: 1mmHg

Accuracy: Maximum Mean error ±5mmHg

         Maximum Standard deviation ±8mmHg

Overpressure Protection: Adult Mode 297±3 mmHg

                    Pediatric Mode 240±3 mmHg

                    Neonatal Mode 147±3 mmHg


SpO2

Measuring Range: 0 ~ 100 %

Alarm Range: 0 ~ 100 %

Resolution: 1 %

Accuracy: 70% ~ 100%  2 %

         0%  ~  69% unspecified

Actualization interval about: 1 Sec.

Alarm Delay: 10 Sec.

Pulse Rate: Measuring and Alarm Range 20~300 bpm

          Resolution       1bpm

          Accuracy ±3bpm

TEMP

Channel: 2

Measuring and Alarm Range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Accuracy: ±0.2 ℃

Actualization intervalabout: 1 Sec.

Average Time Constant: < 10 Sec.

IBP

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range: ART 0 ~ 300 mmHg

                       PA -6 ~ 120 mmHg

                       CVP/RAP/LAP/ICP-10 ~ 40 mmHg

                       P1 / P2-10 ~ 300 mmHg

Press Sensor: Sensitivity 5  uV/V/mmHg

           Impedance 300-3000Ω

Resolution: 1 mmHg

Accuracy: ±2% or 1mmHg which is greater

Actualization interval: about 1 secretary

Standard: ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature

Optional: Nellcor SpO2, EtCO2, IBP,TEMP-2, Thermal Recorder,Wall Mount,Trolly,Central station
