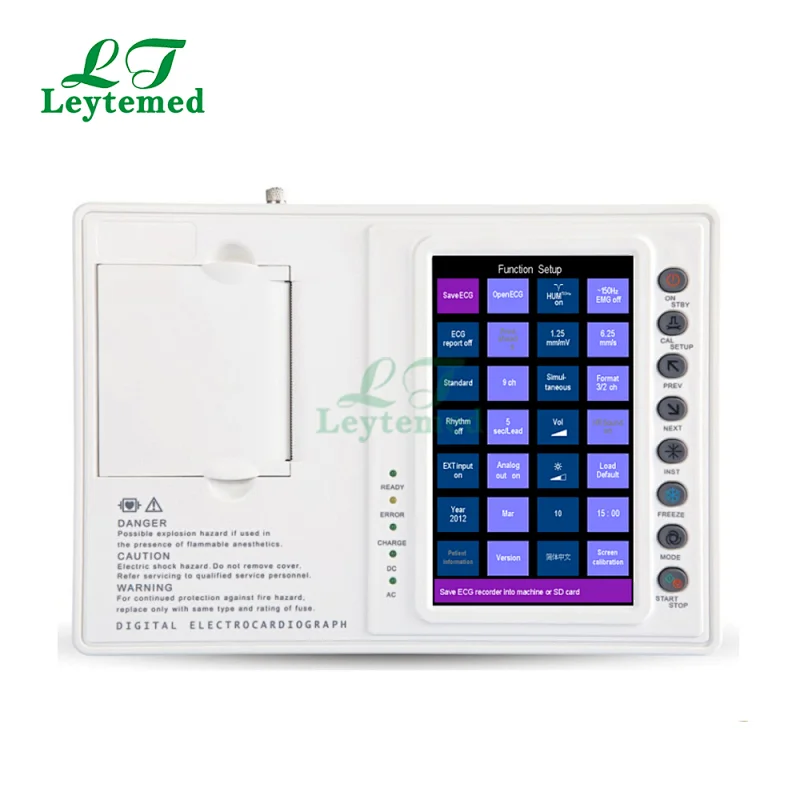

LT1203D 3 channel 7 inch touch screen ECG machine
LT1203D 3 channel 7 inch touch screen ECG machine
LT1203D 3 channel 7 inch touch screen ECG machine
LT1203D 3 channel 7 inch touch screen ECG machine
LT1203D 3 channel 7 inch touch screen ECG machine

LT1203D 3 channel 7 inch touch screen ECG machine

Model NO.
USD 300.00-400.00 / set
Minimum order quantity:
1 set
Supply Ability:
999 set / Week
Country of Origin:
  • Type:Pathological Analysis Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Leyte
  • Model Number:LT1203D
  • Certificate:ISO CE
  • warranty:one year
  • application::adult and children
  • Power::220V±10%,50HZ±2%HZ
  • LCD display:480*680 7 inch touch screen LCD display
  • Safety::IEC class I, type CF
  • Sampling rate::8000 samples/Sec
  • Lead::12 leads,Standard or Cabrera, 12 leads simultaneously acquisition
  • channel:3 channel
  • Machine Dimension ::285(W)*200(D)*55mm(H)
Product Description

LT1203D 3 channel 7 inch touch screen ECG machine


3 channel

7 inch touch screen ECG machine

Lead:12 leads,Standard or Cabrera, 12 leads simultaneously acquisition

Input circuit:Floating,Defibrillation protection

LCD display:480*680  7 inch color screen LCD display ECG waveform, operation conditions,Time,Heart-rate,etc

support patient name,Age,Sex and Hospital name input

Safety:IEC class I, type CF

Sampling rate:8000 samples/Sec

Input dynamics :±500mV

Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart)

Filter :AC(50Hz or 60Hz, -20dB),EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB),Drift (0.5Hz,-3dB)

CMRR :>100dB(with AC filter)

Input circuit current :≤0.1μA

Input Impedance  :≥50Mohm

Time constant  :≥ 3.2 Sec

Frequency Response :0.05--150Hz,-3dB

Noise Level  :≤15μVp-p

Sensitivity  :1.25; 2.5; 5; 10;20; 40mm/mV±2%

Calibration Voltage :1mV±2%

Patient Current Leakage :<10uA

Protection  :Protect from defibrillation and pace-making

Printing system  :Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s

Printing  Speed  :5; 6.25; 10; 12.5; 25; 50mm/s±3%

Printing Output  :3/2 channel; 3/2+1 channel; 3/3channel; 3/3+1 channel

Paper size  :80mm*20m roll type or Z-fold thermal paper

Patient Cable  :standard 10 core

Report storage  :200 reports in built-in memory, support external SD card,report presentation,review and re-printing.

Indicator  :Lead-off detectoin

Power Supply  :12.6V 1500mA Li-poly rechargeable battery pack (DC),220V±10%, 50Hz±2%, 75VA  (AC)

Fuse Specification :2Φ5x20mm 3.15A 250V

Machine Dimension :285(W)*200(D)*55mm(H), Machine weight  2.0 kg (machine only)

Gross weight  3.8 kg  (including accessories), Carton size  41*32*24cm(1pc), 67*44*51cm(4pcs/carton)
