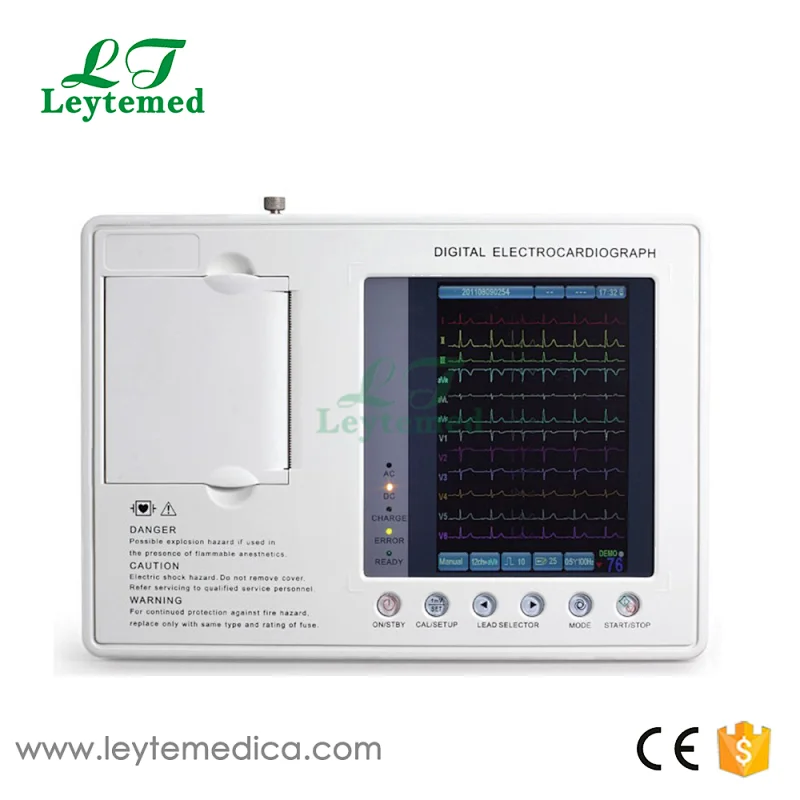

LT1203C CE 7 inch LCD screen three channel ecg machine
7 inch color screen ECG machine
Lead:12 leads,Standard or Cabrera, 12 leads simultaneously acquisition
Input circuit:Floating,Defibrillation protection
LCD display:480*680 7 inch color screen LCD display ECG waveform, operation conditions,Time,Heart-rate,etc
Safety:IEC class I, type CF
Sampling rate:8000 samples/Sec
Input dynamics :±500mV
Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart)
Filter :AC(50Hz or 60Hz, -20dB),EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB),Drift (0.5Hz,-3dB)
CMRR :>100dB(with AC filter)
Input circuit current :≤0.1μA
Input Impedance :≥50Mohm
Time constant :≥ 3.2 Sec
Frequency Response :0.05--150Hz,-3dB
Noise Level :≤15μVp-p
Sensitivity :1.25; 2.5; 5; 10;20; 40mm/mV±2%
Calibration Voltage :1mV±2%
Patient Current Leakage :<10uA
Protection :Protect from defibrillation and pace-making
Printing system :Thermal printer; ≥8dot/mm(Vertical),≥40 dot/mm (Horizontal),printing speed at 25mm/s
Printing Speed :5; 6.25; 10; 12.5; 25; 50mm/s±3%
Printing Output :3/2 channel; 3/2+1 channel; 3/3channel; 3/3+1 channel
Paper size :80mm*20m roll type or Z-fold thermal paper
Patient Cable :standard 10 core
Report storage :200 reports in built-in memory, support external SD card,report presentation,review and re-printing.
Indicator :Lead-off detectoin
Power Supply :12.6V 1500mA Li-poly rechargeable battery pack (DC),220V±10%, 50Hz±2%, 75VA (AC)
Fuse Specification :2Φ5x20mm3.15A 250V
Machine Dimension :285(W)*200(D)*55mm(H),Machine weight 2.0 kg (machine only)
Gross weight 3.8 kg (including accessories),Carton size 41*32*24cm(1pc), 67*44*51cm(4pcs/carton)
