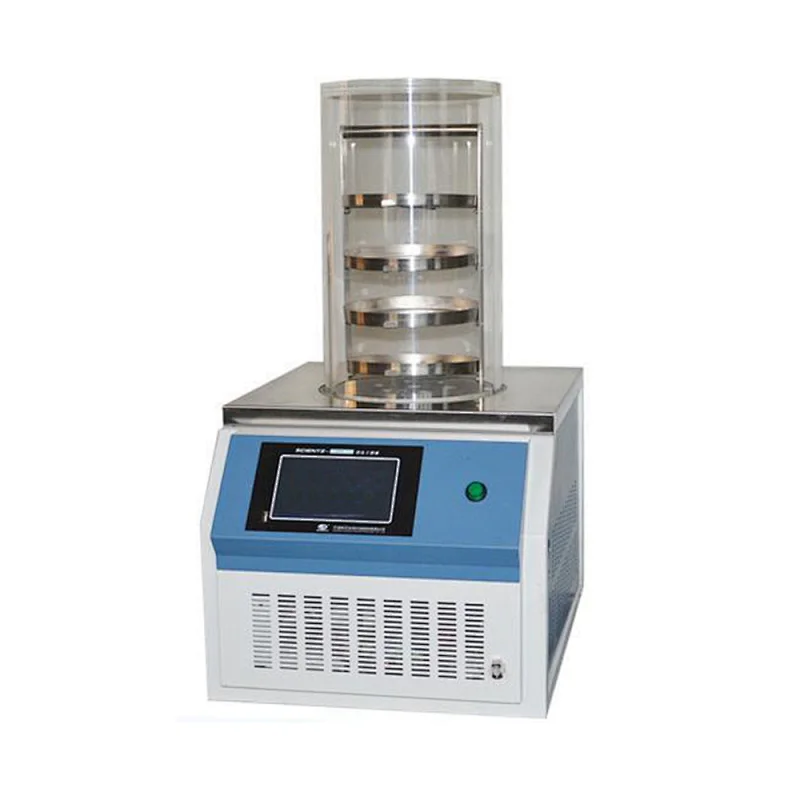

KD-10N touch screen 7 inch TFT LCD freeze dryer
KD-10N touch screen 7 inch TFT LCD freeze dryer

KD-10N touch screen 7 inch TFT LCD freeze dryer

USD 3,400.00-3,600.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
guangzhou for KD-10N touch screen 7 inch TFT LCD Freeze Dryer
  • Application:Medicine Processing
  • Application:Chemicals Processing
  • Application:Plastics Processing
  • Application:Food Processing
  • Condition:New
  • Type:Freeze Drying Equipment
  • Place of Origin:CN;GUA
  • After-sales Service Provided:Video technical support
  • Warranty:12 Months
  • Brand Name:leyte
  • Voltage:220V 50HZ
  • Power:950W
  • Dimension(L*W*H):W450xD580xH(380+450) mm
  • Weight:3KG
  • Certification:CE ISO
  • No-load Temperature(℃):≤-55 °C
  • Temperature Range(℃):-45~60℃
  • Power source::AC220V 50HZ ≤300W
  • Freeze Area(m2):0.12 m2
  • Plate Load Capacity(L):1.5 L
  • Ability to Capture Water:3Kg
  • Max Vacuum Degree(Pa):<10Pa
  • Power(W):950W
  • Certificate:CE ISO
  • service:OEM
Product Description

KD-10N touch screen 7 inch TFT LCD Freeze Dryer Technical Data





Ordinary Multi-Manifolds


Top-Press Multi-Manifolds

No-load Temperature(℃)

≤-55 °C

Temperature Range(℃)


Freeze Area(m2)

0.12 m2

0.08 m2

0.12 m2

0.08 m2

Plate Load Capacity(L)

1.5 L

1 L

1.5 L

1 L

Ability to Capture Water



Max Vacuum Degree(Pa)


Machine Dimension(mm)





×H(380+450) mm

×H(380+450) mm

×H(380+450) mm

×H(380+450) mm

Sample Tray Size(mm)


Ø 3×180 mm


Ø 3×180 mm



Power Supply

110V/60Hz or 220V/50Hz

Interlayer Spacing(mm)

70 mm

Cold Trap Size(mm)

Ø215×160 mm

The Number of Schering


Ø22: 260

Ø22: 165

Ø22: 260

Ø22: 165

Ø16: 480

Ø16: 285

Ø16: 480

Ø16: 285

Ø12: 920

Ø12: 560

Ø12: 920

Ø12: 560

N.W./ G.W(KG)







( 1 ) The freeze dried machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap.
( 2 ) 7- inch TFT LCD touch screen control system , easy to operate , and powerful.
( 3 ) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data.
( 4 ) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.
( 5 ) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .
( 6 ) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.
( 7 ) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer.


                                                                         Click to contact us

Our professional sales staff to help you make better purchasing decisions

click to order1000.jpg

Our Company

Guangzhou Leyte Electronic Co., Limited




Quality Workplace
Good Labor relations
 Testing equipment




Speak fluent English
Well-trained and professional sales
More than 10 years of experience engineers

team +1.jpg

Our professional sales staff to help you make better purchasing decisions



Customer Photo


Where are our customers?

We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.

371 220.jpg

Your satisfaction is our duty! It will be our great honor to serve you.



















Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.
We have exported our products to more than 50 countries and built long term partnerships with clients.
We do hope we can offer you more help in medical field and build the long term business relationship with you.

Packing & Delivery


 DHL/EMS/FedEx/TNT/Ups etc.
Delivery Details1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~5 days to arrive , which is door to door, you no need go out can get KD-10N touch screen 7 inch TFT LCD Freeze Dryer.
2.We can also help you ship by air cargo, it takes about 2-7 days to arrive, while you need to go to Air port to take KD-10N touch screen 7 inch TFT LCD Freeze Dryer.
3.If goods are large quantity and you need not so urgently ,you can choose by sea to save some freight cost which takes you about one month to get KD-10N touch screen 7 inch TFT LCD Freeze Dryer.


No matter what delivery way ,depending on your actual requirements...

Our Service


Pre-Sales Service

* For all  your  inquires  about  us, we will reply you in detail within 24 hours.

* We  own  well-trained   and   professional   sales   who  can speak fluent English.

*We offer  OEM  services.  We  can  print  your  own  logo  on KD-10N touch screen 7 inch TFT LCD Freeze Dryer,also can customize the retail box  packing and other things.

* View our company.

After-Sales Service

* We have very experienced engineers ,can help you better use KD-10N touch screen 7 inch TFT LCD Freeze Dryer.Training how to instal the machine, training how to use the machine.

*If has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost.

*We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault.

*If need parts for replacement, we will send to you.

*If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.


























Q:What’s the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What’s your delivery time?
A: Generally it is 10 days if the goods are in stock.

or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.
