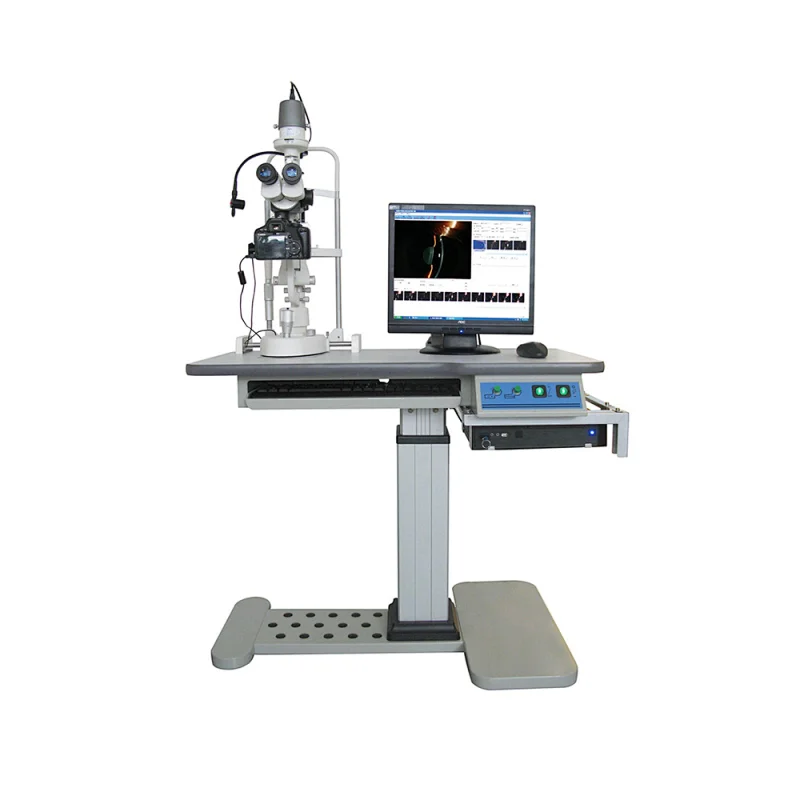

FSL-21A  tower style slit lamp with 5 magnification
FSL-21A  tower style slit lamp with 5 magnification
FSL-21A  tower style slit lamp with 5 magnification

FSL-21A tower style slit lamp with 5 magnification

Model NO.
USD 1000.00-1500.00 / set
Minimum order quantity:
1 set
Supply Ability:
5000 set / Month
Country of Origin:
huangpu for FSL-21A tower style slit lamp with 5 magnification
  • Place of Origin:CN;GUA
  • Brand Name:leyte
  • Model Number:FSL-21A
  • Microscope Type:Converging stereoscope microscope
  • Eyepiece:12.5x
  • Pupillary Adjustment:50mm ~ 82mm
  • Diopter Adjustment:+- 5D
  • Side Shift:110mm
  • Depth shift:90mm
  • Height shift:30mm
  • Fixation Target:Red LED
  • Slit Angle:0° ~ 180° adjustable
  • Power supply ::110V / 220V AC
Product Description

FSL-21A  tower style slit lamp with 5 magnification

FSL-21 tower style slit lamp with 5 magnification


1)BacLite Background Illumination Model

2)Digital Camera Adaptor

3)Beam Splitter

4)MediView Image Process Software

5)Foot-controlled shooting model

6)Digital Single Lens Reflex Camera(CANON)


1.The Galilean type microscope system adopts revolving drum,the highest magnification is 5 steps. (Professional type)

2.The excellent optical system can give you a clear and clean image.

3.The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.

4.The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients eye.

5.The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.

6.The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image capture system.

7.The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible.

Magnification change
Revolving Drum
Total magnification Ratio
6x,10x, 16x, 25x,40x
professional configuration
Angle between eyepieces
13 degree
Pupillary adjustment
Diopter adjustment
Field of view
40x (¢5.5mm), 25x (¢8.5mm),16x (¢13.5mm), 10x (¢22mm), 6x (¢34.7mm)

Slit Illumination:

Slit width: Continuously variable from 0 to 14mm at 14mm,slit becomes a circle

Slit length: Continuously variable from 1mm to 14mm

Lamp: 6V/20W Halogen Lamp

Slit angle: 0~180 degree(continuously adjustable both vertical and horizontal)

Slit inclination: 4 step 5 degree,10 degree,15 degree,20 degree

Filters: Thermal safety,UV,Red-free,Cobalt Blue

Aperture diameters: ¢14mm,¢10mm,¢5mm,¢3mm,¢2mm,¢1mm,¢0.2mm

Longitudinal movement: 90mm
Lateral movement: 100mm
Vertical movement: 30mm

Vertical movement: 80mm
Fixation: Green LED

Input voltage: 220V/110V~±10
Input frequency: 50Hz/60Hz
Power consumption: 30VAmax
Output voltage: Lamp  6V (continuously adjustable),Fixation  3V

Dimension & Weight:

Dimension: 740mm x 450mm x 500mm

Gross weight: 25Kg

Net weight: 24kg

Working environment:

Temperature: +5~+40

Relative humidity: ≤80%

Air pressure: 800hpa~1060hpa

Storing environment:

Temperature: -40~+55

Relative humidity: ≤93%

Air pressure:700hpa~1060hpa

Transporting environment:

Temperature: -40~+55

Relative humidity: ≤93%

Air pressure: 700hpa~1060hpa
