Model NO.:
ECG-8112
Price:
USD 900.00-1000.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Huangpu
Quantity:
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Type:Echocardiography machine
  • Brand Name:Leyte
  • Model Number:ECG-8112
  • Display:7inch touch screen
  • Channels:12
  • LCD display:800*480
  • Sampling rate:8000 samples/Sec
  • Input dynamics:±500mV
  • Filter:AC(50Hz or 60Hz, -20dB)
  • CMRR:>100dB(with AC filter)
  • Input circuit current:≤0.1μA
  • Power Supply::12.6V 1500mA Li-poly rechargeable battery pack (DC),220V±10%, (AC)
  • Machine weight:2.25 kg
Product Description

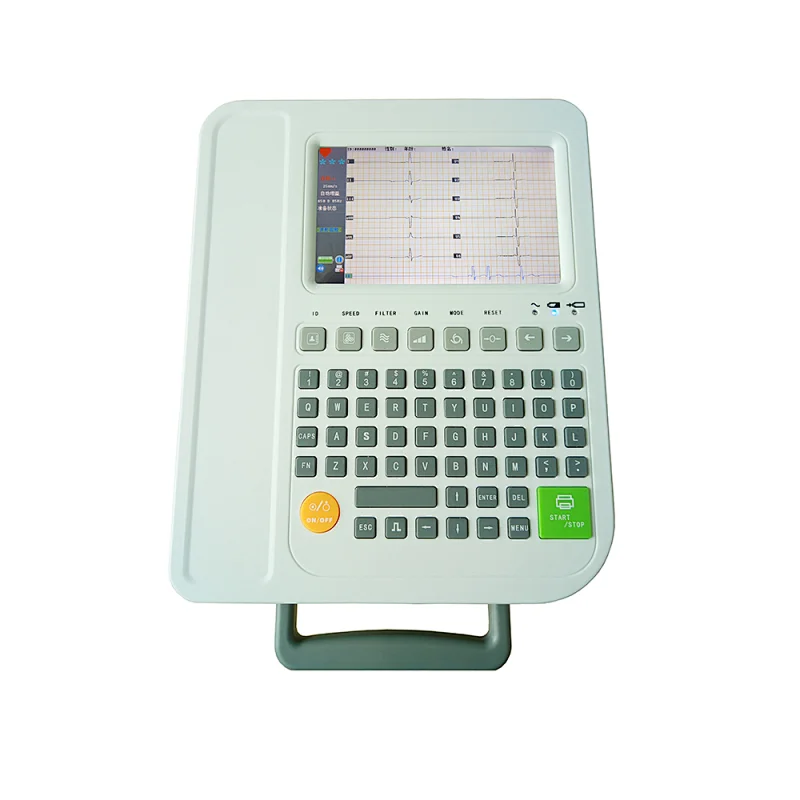

ECG-8112 ECG Portable Echocardiography machine

Main Features

1.12 channel ECG machine with interpretation
2.7"color TFT LCD display
3.Simultaneous 12 leads acquisition and (Manual/Auto)
recording with high resolution thermal printer
4.Manual/Auto working modes
5.Use digital isolation technology and digital signal processing
6.Baseline stabilization inspection
7.Full alphanumeric silicon keyboard
8.Support U disk storage
9.Support USB (Optional)

Technical Specifications

Lead: Standard 12 leads
Acquisition:Simultaneous 12 leads
A/D Converter: 14bit
Sampling Rate:1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR:≥100dB (with AC filter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current:≤0.1μA
Input Impedance: ≥50MΩ
Patient Current Leakage: <10μA
Calibrating Voltage: 1mV±2%
Skin Voltage Tolerance:≥±500mV
Time Constant: ≥3.2s
Frequency Response: 0.05 Hz~250Hz
Noise Level:<15μVp-p
Sensitivity Threshold:≤20μV
Signal Channel Interference:≤0.5mm
Printer: Thermal printer
Paper:215mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)
Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA
AC 85~265V, 50/60Hz
DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension:310mm×220mm×89mm
Weight: 3kg (with battery)
